Hot Iveco Tractor/ Cargo Truck

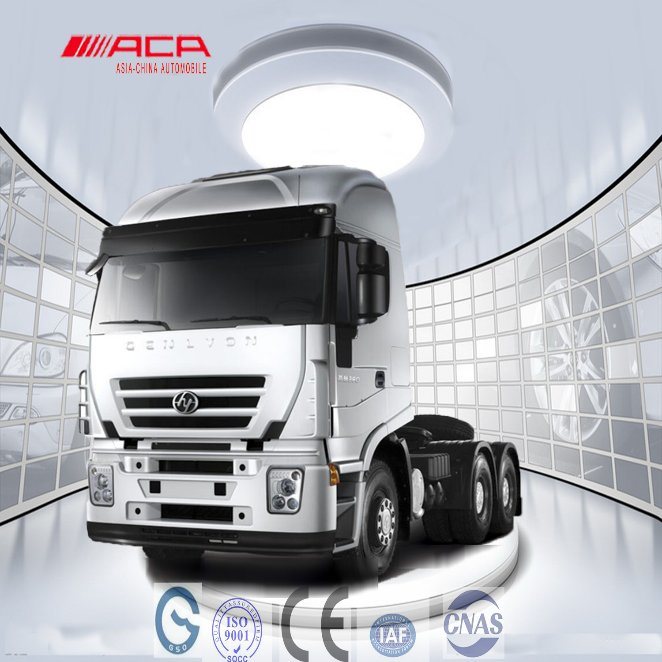

Saic-Iveco Hongyan Genlyon Tractor truck;
1. Italian advanced design and manufacture techniques;
2. Saic-Fiat Hongyan Cursor engine, export back to European and American market;
3. Excellent quality,competitive price, withmature spare parts system.

Speicification is only for your reference, for detailed informaiton you are welcome to enquiry us!

Hongyan Genlyon Euro III 6× 4 Tractor Truck
Driving type		6× 4	6× 4	6× 4
Total mass kg		40000	49000	49000
Tractor curb weight kg		9670	9670	9670
Saddle carrying capacity kg		15200	15200	15200
Total mass of the trailer kg		39200	39200	39200
Wheelbase mm		3225+1350	3225+1350	3225+1350
Outline dimensions mm	Length	6718	6718	6718
	Width	2500	2500	2500
	Height	3832(3957 containing cab rear spoiler)	3832(3957 containing cab rear spoiler)	3832(3957 containing cab rear spoiler)
Max. speed km/h		95(110)	95(110)	95(110)
Max. gradeability %		30	32	35
Fuel consumption under certain conditions L/100km		32-41	32-41	32-41
Saddle joint face ground clearance(280 frame)mm		1348(Full load Full load 1245)	1348(Full load 1245)	1348(Full load 1245)
Saddle front/rear turning radius mm		1393/2084	1393/2084	1393/2084
Distance between saddle and balance shaft mm		320	320	320
Traction pin diameter mm		50.8	50.8	50.8
Engine		C9-380	C9-380Hp	C9-400Hp
Engine power kw(Ps)		250(340)	280(380)	297(400)
Max. torque/speed (N. m/(r/min))			1500/1100-1700	1600/1100-1700
Clutch		Φ 430 pull-type diaphragm spring clutch	Φ 430 pull-type diaphragm spring clutch	Φ 430 pull-type diaphragm spring clutch
Transmission		12JSD160T	12JSD180TA	12JSD180TA
Cab		High roof, doube sleeper, silver color	High roof, long cab, low floor	High roof, long cab, low floor
Steering gear		ZF variable ratio hydraulic steering gear	ZF variable ratio hydraulic steering gear	ZF variable ratio hydraulic steering gear
Driving axle		Single reduction axle: 4.11, 4.625 Double reduction axle: 4.42, 4.8, 5.73	Single reduction axle: 4.11, 4.625 Double reduction axle: 4.42, 4.8, 5.73	Single reduction axle: 4.11, 4.625 Double reduction axle: 4.42, 4.8, 5.73
Tire		11.00-20(11.00R20)	11.00-20(11.00R20)	11.00-20(11.00R20)
Emission standard		Euro III	Euro III	Euro III
Announcement lot		2001H8	2001H8	2001H8
