Saic-Iveco Hongyan Genlyon M100 Tractor with FIAT Cursor Engine

SAIC-IVECO HonGYAN Company is an experienced heavy duty truck manufacturer. based in Chongqing city, China, we design, manufacture a wide range of heavy duty trucks and special trucks based on heavy duty trucks such as tractor unit, Dump Truck, Cargo truck, Tanker truck, and some construction engineering vehicles like concrete mixer truck. SIH is based on China state owned enterprise.

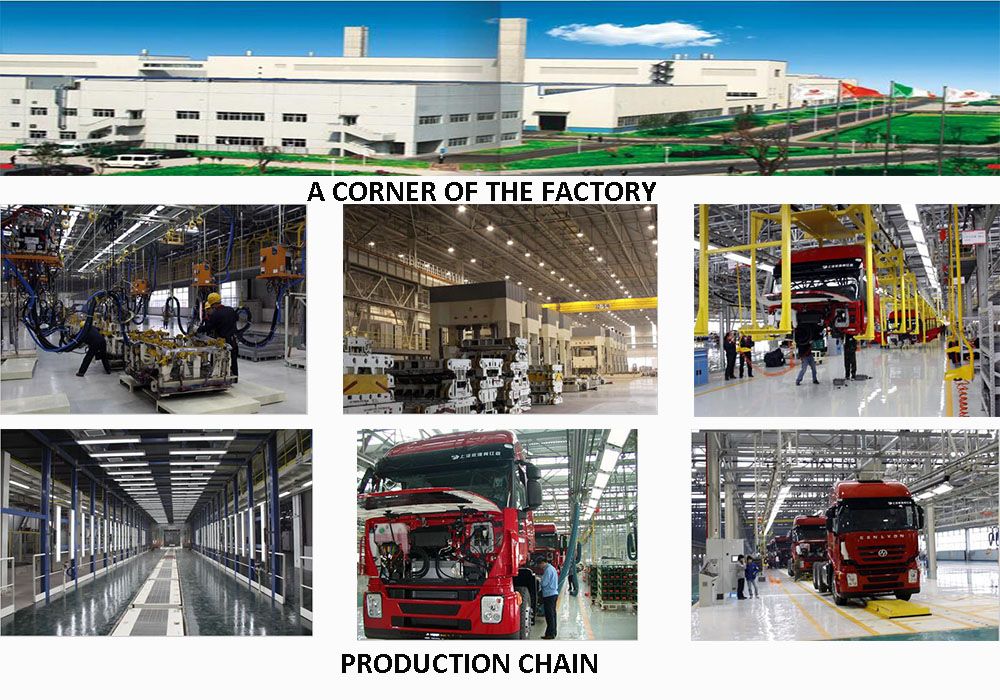

SIH implemented a series of effective quality control measures , introduced advanced IVECO prototype vehicle technology, acquired state-of-the-art production and inspection equipment, employed experienced staff, and strictly implemented the ISO9001:2000 quality management system to monitor every production process. In addition, we provide continuous training to improve employee efficiency, which greatly reduces our production costs, thus enabling us to provide our heavy trucks at lower price.

Chongqing Asia-China Automobile Sales Co., Ltd is a leading sales company of heavy trucks and xcmg equipment products , related accessories,founded in 2002 China, which is one of the biggest authorized agents of Chongqing Hong Yan Automobiles.

We have twelve subsidiary company and offices in China and overseas. The average sales has reached to 2500 units per year in china while the export amount is more than thousands units. And the annual income has surpassed 80 million dollars.Because of excellent quality, flexible sales model, complete unit of accessories, our company set up impressive image in China automobiles field. Recent years, our company is dedicating in extending overseas market. Our products have exported to more than 20 countries, primarily to markets in Vietnam, Tadzhikistan, Saudia Arabia, Algeria, Congo, Nigeria and etc. At the same time, our sales and service team accumulated a lot of experience in international trade and established complete sales and service network in Africa and Central Asia. What's more, we enjoyed excellent reputation among our customers.


Saic-Iveco Hongyan GENLYON M100 Tractor Head Series:

1. Adopt Italian advanced techonology;
2. Flexible sales system, competitive price;
3. Excellent quality, best after-sale services and mature spare parts system.

If you are interested in this model, please feel free to send your inquiry, and we will always be glad to quote.

TECHNICAL SPECIFICATION
NO.	SPECIFICATION	PARAMETER			NOTE
1	Model	CQ4254HTVG324B
2	Cab	Genlyon M100Cab Left Hand Drive, Flat-Roof , with AC			Yellow/Red/White
3	Drive	6×4
4	5th Wheel Rated Payload(kg)	16000
5	Kerb Weight(kg)	8270
6	Gross Vehicle Weight(kg)	25000
7	Hualage Weight(kg)	40000
8	Overall Dimension(mm)	6718×2500×3832(L*W*H)
9	5th Wheel Diameter(mm)	50 (2.5inch)
10	Max Speed(km/h)	120
11	Wheelbase(mm)	3225+1350

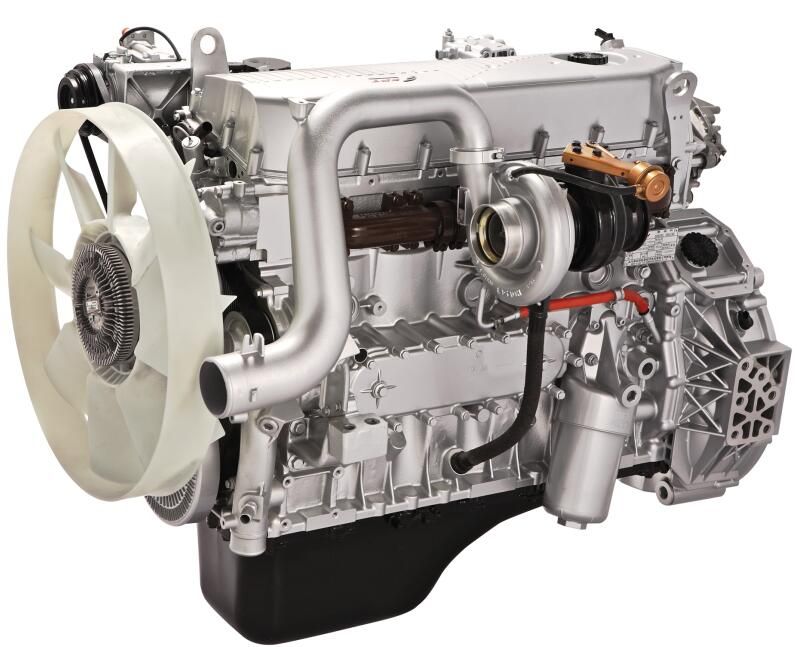

12	Engine	Cursor 9 380			Euro 3
13	Engine Output(HP)	380
14	Max. torque/speed (N.m/(r/min))	1500/1100-1500
15	Gearbox	12JSD180TA			Fuller technology
16	Steering gear	Z06 henglongHydraulic Steering Gear
17	Drive Axle	H6A Single Reduction Driving Axle
18	Tyre	315/80R22.5, 12.00R20
19	Oil Tank	400L Aluminum-Magnesium Alloy
