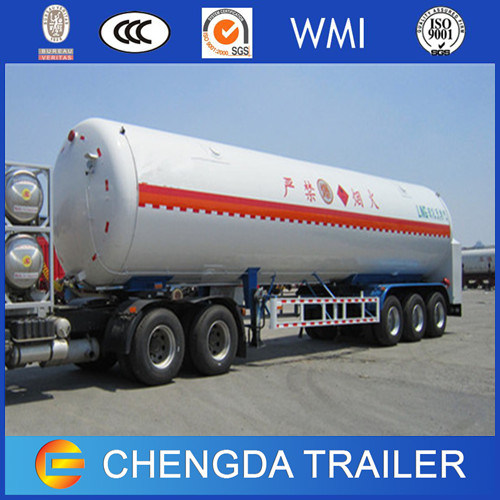

Tri-Axle Tanker Trailer for LNG Transportation for Sale

Tri-axle Tanker Trailer for LNG Transportation for Sale
CHENGDA SEMI TRAILER


NO.1 Specification for LNG tanker semi trailer

Tanker Essential Information
1	Dimensions(length*width*height)	13000×2500×3950
2	Estimated Tare Weight	18890KG
3	Payload	21110KG
4	Total Weight	40000KG
Shell Of Tanker
1	Products	Liquid Nature Gas(LNG)
2	Fluid property	Flammable
3	Design temperature	To-196ºC inner tank
4	Design pressure	0.68MPa inner tank
5	Corrosion allowance	0mm inner tank
6	weld joint factor	1.0
7	Major materials of bearing pressure	Inner tank Tanker body :S30408 /S30408III
		Inner tank End plate :30408
8	Filling weight per volume
9	Maximum filling weight
10	Compartments	ONE
11	Shape	Inner TankCylindricalbody with oval dish end
Detection
1	Heat treatment
2	Flaw detection	100% Flaw detection
3	Test PRESSURE	0.68MPa
Manhole (As customer's requirement )
1	Quantity
Safety Valve (As customer's requirement )
1	Quantity	TWO
2	Location	Into the cabinet
3	Size	DN25
LEVEL GUAG E(As customer's requirement )MZC-IIA,0-1500MM
1	Quantity and Model
2	Location	In the cabinet
3	Size	As customer's requirement
Valve and pipe Detail (As customer's requirement )
Running System
1	Axles	3	13 TON FUWA Axles
2	Suspension system	1	FUWA leaf spring suspension 13*90*10
3	Wheel rim	12	9.0*22.5
4	Tyre	12	Brand :Triangle,12R22.5
5	Kingpin	1	3.5",bolt on ,in rubbing plate,fabricated
6	Landing legs	2	JOST D200single linkage, Gear type ,28T
Control System
1	Emergeny Cut-off Valves	3		Gas phase DJQ-40Liquid phase DJQ-40 pressurize DJQ-40
2	Cryogenic Globe Valve	5		Gas phase DJL-40DLiquid phase DJL-50Dpressurize DJL-32D
3	operating mode	1		Mechanical and pneumatic
4	Liquid gauge	1		MZC-IIA,0-1500MM
5	pressure gage	2		YTN-100T0-1.6MPaLEVEL 1.6
Pneumatic Brake System
1	Spring brake chamber	6	FUWA
2	Air connector	2	FUWA
3	Relay Valve	2	DAY-25 set-pressure 0.72MPA
4	ABS	1	ABS
Electronical System
1	7-Pin Socket	1	24V 7-pin socket
2	LED Lamp	1	All kinds of lamp
3	Cable	1	Stander cable
Accessories
1	Small Tool box	1
2	Wheel carrier	2
3	Fire extinguisher	2	8kgWith red box
4	Cabinet	2
5	Steel fender	6
6	Static conductive belt	1	C shape
7	Impeller blasting	1	Completely
8	Paint	1	As customer requirements
TERMS
1	Payment terms: 30%TT in advance,the balance should be paid against the copy of B/L.Or L/C at sight.(BY T/T or L/C)
2	Terms of delivery: in 30 days after the seller received 30% advance payment (try deliver the goods as soon as possible)
3	PORT:Tianjin or Qingdao or Shanghai
4	MOQ: one unit
Product Introduction The vehicle is used to transport liquefied natural gas (LNG) specially. It has been applied in liquefied petroleum gas transportation already for 20 years. It has reasonable design, proven technology, safe and reliable. The design, manufacturing and inspection of our products are in accordance with the national standards:GB150, GB1589, it is equal to international standards. We can design different size tanks for users to correspond with local vehicles loaded weight standard.

NO.2 Packaging &Shipping for lpg propane tanker semi trailer
Waxed before delivery ,Packaging is naked and shipped by sea ,Delivery is related to the destination
40ft and 20ft Container shipment
Bulk shipment and Roll-Roll shipment
Flat rack shipmentor others

NO.3 Our Services

Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining asatisfied smile!
1.we can do the designs according to the your requirement and idea.
2.we can offer you the high quality &reasionalble price
3.we can offer your agood after-sell service
4.we have strong professinal design team
5. promptly delivery. small order is welcome
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with 3% off discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

NO.4 Company Information
Established in 2005, our company is aprofessional manufacturer integrating the production, scientific research &development and sales.
We are involving in oil/fuel tanker trailer, bulk cement trailer, flat bed semi trailer,low bed semi trailer,Tanker truck and concrete mixer truck, trailer, semi-trailer, tractor head, engineering machinery and trailer parts.
CHENGDA TRAILER,
PROVING YOUR SATISFIED TRAILERS AND SERVICE!

NO.5 FAQ

1. Q: Are you amanufacturer or trading company?A: We are manufacturer.
2. Q: What about your products quality?A:"Quality is priority." We always attach great importance to quality controlling from the very beginning.
3.Q:What payment do you accept?A: T/T, L/C, Trade assurance;
4.Q:What is the MOQ of your products?A: 1unit.
