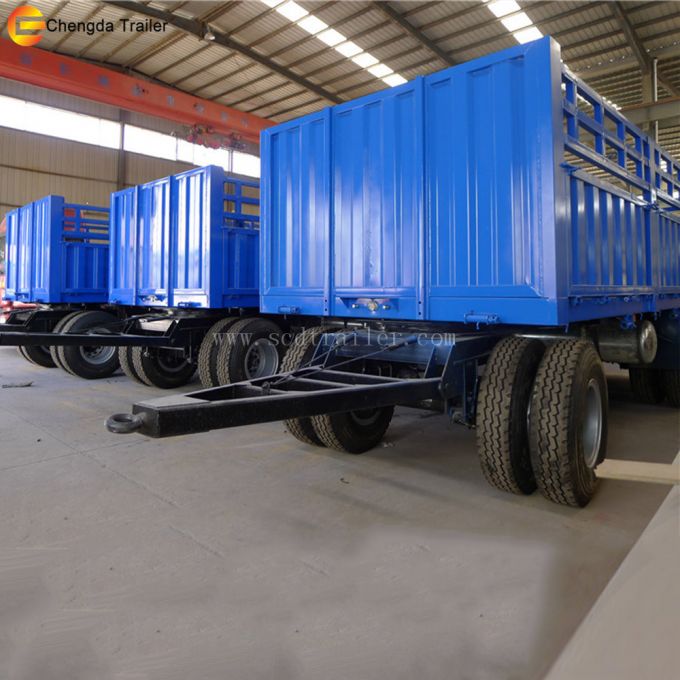

30 Ton 2 Axle Cargo Faltbed Full Trailer

Specification for full trailer

Trailer Model	fulltrailer
Function	2x 20ft and 1x40ft container or other goods transportation
Tare Weight(KG)	6900
Loading Capacity(KG)	40000
Total Dimensions (L*W*H) mm	13000*2500*1500
Main Beam	The height of the beam is 500 mm,the thickness of upper plate is16mm,down plate is 18mm,middle plate is 10mm
AxleNumber	2
AxleBrand	FUWA 13Ton Axle
Tire Type and	12.00R22.5 tubeless, other
Suspension System	Standard Mechanical suspension
SteelSpring	10/10 leaf spring suspension
BrakingSystem	Dual Line braking system (none ABS)
Brake air chamber	Six big double air chamber
Electrical System	1.Voltage:24V 2.Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable
Tool box	1 Standard
Traction pin	50#or 90#, removeable
Landing Gear	Standard28Ton,external
Container Twist Locker	12 Screw type
Spare Wheel Bracket	2 pieces
painting	Optional(yellow,red,white,blue etc.)
Packing	Polish with wax before shipping

Shandong yuncheng chengda tailer manufacturing co. established from 2205, we have obtained CCC BV ISO WMI certificates. and as the top brand trailer in China, we can offer you best price with suitable spec.
let me know your request, then i send you spec sheet by mail. thanks
