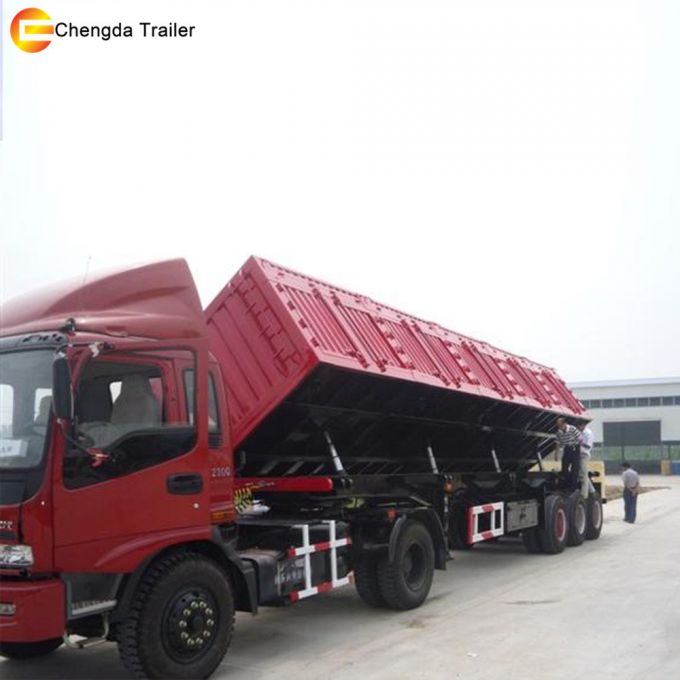

3 Axles Side Tipper Trailer Tractor Dump Truck Trailer for Sale
- USD 15800.00 /Unit
- 1 Unit
- 99 Unit
- 16 days
Product Description
3 Axles Tipper Trailer Tractor Dump Truck Trailer for Sale
3 Axles Tipper Trailer Tractor Dump Truck Trailer for Sale
1.Tare weight: 8500kg
2.Box Capacity :30M3
3.Cylinder: HYVA FE214-7130
4.Rated load capacity: 60Ton
The tipper semi trailer of our company developed, applied with Euro popular UStructure, and employed UG 3D software and NASTRAN ANSYS. Inner box dimensions are 9500*2420*1500mm and 9050*2300*1500mm. Load volumes are 32 CBM and 30 CBM. Tare Weight is 9500 KG and 8500 KG. Rated load capacity is 60000KG. The box applied with Sweden SSAB HARDOX 450 high strength wear-resistant steel, and its high strength wearing quality, and tensile strength lengthen service life for 2or 3years.
The frame applied strength steel, high strength and light weight made its tare weight reduced 35% under the condition of rated load 60T compare to other common material. The hydraulic system applied with full set of HYVA hydraulic system, it has powerful lifting and its rated lifting force up to 80T. The tipper semi trailer fit for transporting bulk mass stone block, iron ore, mineral powder, sand rock, and so on.
3 Axles Tipper Trailer Tractor Dump Truck Trailer for Sale
Contact person: Sierra Mu
Mob 0086188 8832 0759
Tel:0086-531-69985132
Fax:0086-531-69985133
3 Axles Tipper Trailer Tractor Dump Truck Trailer for Sale
| Product | 3 Axles Tipper Trailer Tractor Dump Truck Trailer for Sale | ||
| PARAMETER | Outline Dimension(mm) | L*W*H: 10,000x2480X3091 | |
| Inner Dimension(mm) | L*W*H: 9,897X2300x1500 | ||
| Axle space(mm) | 4700mm+1310mm+1310mm | ||
| Tare weight | 8500KGS | ||
| Box Capacity (m3) | 30 | ||
| OEM | Landing gear | JOST A400 | |
| Kingpin | 3.5" king pin, JOST | ||
| Brake system | Dual line pneumatic brake system. WABCO brake valve | ||
| Abs | No | ||
| Brake chamber | Type 30/30 spring brake chamber | ||
| Suspension | Spring suspension | ||
| Axle | FUWA square axle, 13 ton capacity/set,3pcs | ||
| Tire | 11R20, Steel Radius Tyre, 12Pcs | ||
| Rim | 8.0-20, 12 Pcs | ||
| Tool box | 1(1m) | ||
| Spare tire carrier | 2units | ||
| OTHERS | Cylinder | HYVA FE214-7130 | |
| Box Material | Q700 | ||
| Box Thickness | Bottom: 5mm | Side: 5mm | |
| Painting | As customer's request | ||
1.Tare weight: 8500kg
2.Box Capacity :30M3
3.Cylinder: HYVA FE214-7130
4.Rated load capacity: 60Ton
The tipper semi trailer of our company developed, applied with Euro popular UStructure, and employed UG 3D software and NASTRAN ANSYS. Inner box dimensions are 9500*2420*1500mm and 9050*2300*1500mm. Load volumes are 32 CBM and 30 CBM. Tare Weight is 9500 KG and 8500 KG. Rated load capacity is 60000KG. The box applied with Sweden SSAB HARDOX 450 high strength wear-resistant steel, and its high strength wearing quality, and tensile strength lengthen service life for 2or 3years.
The frame applied strength steel, high strength and light weight made its tare weight reduced 35% under the condition of rated load 60T compare to other common material. The hydraulic system applied with full set of HYVA hydraulic system, it has powerful lifting and its rated lifting force up to 80T. The tipper semi trailer fit for transporting bulk mass stone block, iron ore, mineral powder, sand rock, and so on.
3 Axles Tipper Trailer Tractor Dump Truck Trailer for Sale
Contact person: Sierra Mu
Mob 0086188 8832 0759
Tel:0086-531-69985132
Fax:0086-531-69985133
3 Axles Tipper Trailer Tractor Dump Truck Trailer for Sale
