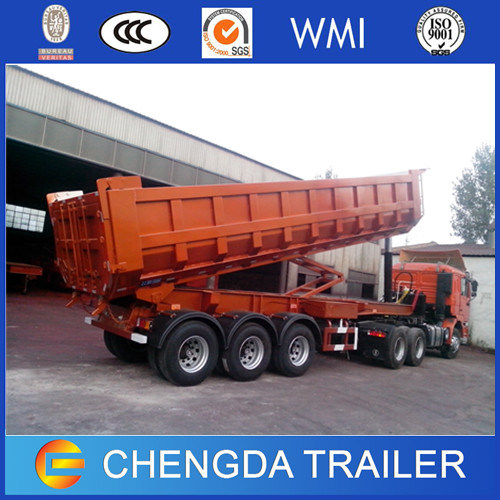

3 Axles Tipper Semi Trailer with Low Price

Technical parameters

Weight
Tare weight	8.5T-10T
Payload	60T-80T(25m3-37m3)
Axle weight	14T/16T/20T per axle
Specification
Axle number	3
Axle brand	Fuwa/hj/bpw
Suspension	Mechanical suspension
Kingpin	JOST50#/90# traction pin
Dimensions(L*W*H)	13000x2500x3100mm
Rim	9.00*22.5 zhengxing brand 12[ieces
Lifting system	Full set of hyva hydraulic system
Steel spring	10pieces
Tire
Tire specs	12.00R22.5 triangle brand
Number of tire	12 pieces
Spare tire carriers	2 pieces
frame
frame beam	Upper and lower plate is 20mm.middle is 10mm(double/three plate) height is 500mm
frame floor	The thickness is 3mm flat bed
Brake
Brake brand	Kemi brand of china
Brake chamber	Two double and two single chamber(TKL brand)
ABS	Kemi brand of china (4s/2m)
Electrical system
Voltage	24v
Receptacle	7ways(7wire harness)
Light color
Side marker lamp	orange
Rear lamp	red
Turn signal lamp	orange
Support leg	JOST D200T

FAQ

1Whyyouchooseus?
Weareleadingtrailermanufacturerwhichhavemorethan13years
produceexperience.

Goodatcontrolframequalitywhichisthebasicoftrailerlifetime.
Chooseusyouchooseprofessionaltransportationschemesupplier

2Howtotrustus?
Thegoodfaithmanagementisourphilosophy,andwelcomevisitsour
factoryatanytime.

WearealsowillingcooperatewithyourcertifyingauthoritysuchasWMIBVCCCISOetc.

3Whereisourlocation?
JinanCityShandongProvinceP.R.China

4Howtocontactus?
Contact person Amanda Wang
phone0086 182 5311 2968
