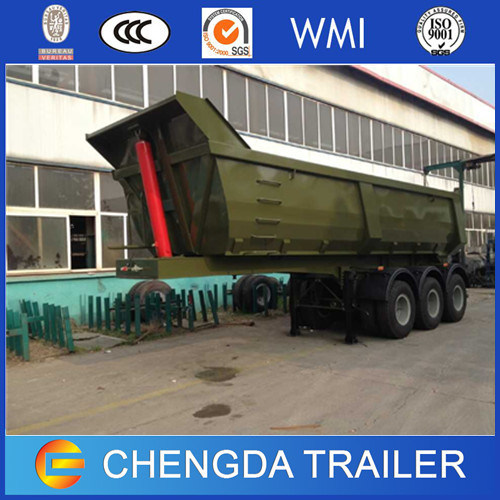

China Made Tri-Axle 60ton Side Rear Dump Semi Trailer Sales

Trailer Model	3 axles 60ton side tipper semi trailer for sale
Model Number	SCD9402Z
Dimension(Lx Wx H)	11200mmX2550mmX3500mm
Inner Dimension	10000mmX2330mmX1780mm
Wheelbase(mm)	5100+1320+1320mm
Axle	FUWA brand 13 TON Axle
Axle Number	Three
Lifting	HYVA brand, hydraulic lifting system
Track	1840/1840/1840
Suspension system	Mechanical suspension, Three axis series balanced steel plate spring suspension
Suspend Size(mm)	1760
Steel Spring	10/10/10 leaf spring suspension
Curb Weight(kg)	12000
Max Total Weight(kg)	50000
Thickness	bottom:6mm, side:4mm
Traction Pin	Φ90MM
Tire Type and quantity	1100R2012units
Front Fitting Radius (mm)	1760
Landing Gear	FUWA brand, 28ton
Brake system	Standard system, None ABS system
Brake air chamber	Two double and two single chamber
Electrical system	1. Voltage: 24v2. Receptacle: 7ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable.
Painting	Color as customer's requirement
Packing	Nude, Polish with wax before shipping
Delivery way	Transfer to Tianjin Port, and carry by ro-ro ship, the freight cost depends on the volume
