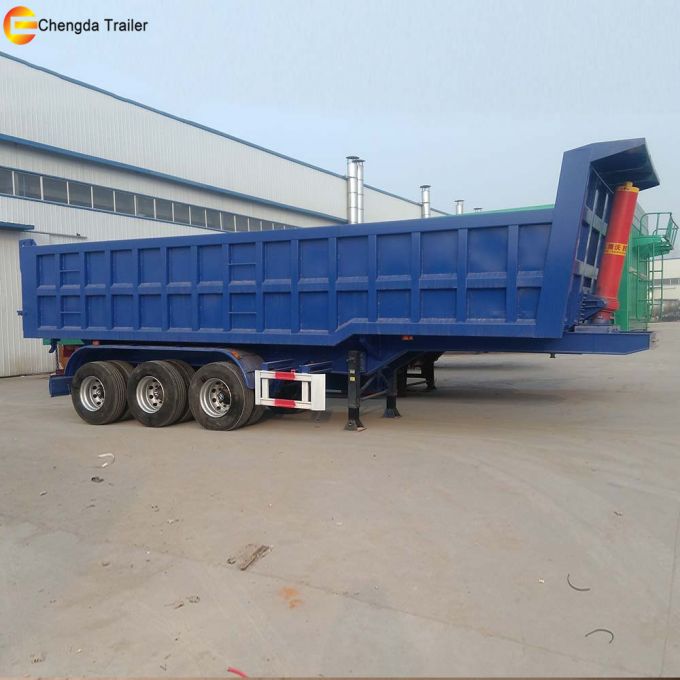

3 Axle 50t 60t Dump Tipper Dumper Semi Trailer for Sale

3 Axle 50T 60T Dump Tipper Dumper Semi Trailer for Sale

3 Axle 50T 60T Dump Tipper Dumper Semi Trailer for Sale
Overall Dimension(L x W x H)(mm)	9000*2500*3700
Inner Dimension(L x W x H)(mm)	8200x2400x1500
Carrier Volume(m³)	27m³
Thickness	Bottom: 6mm, Side: 4mm
Lifting Type	HYVA lifting
Lifting System	Five ø125lifting cylinders, one piece of ø140 displacement cylinder
Tare Weight(KG)	7500-8000kg
Loading Weight( KG)	40000
Axle Brand	FUWA13TON Axle
Suspension system	Leaf springsuspension
Steel Spring	10/10/10 Heavy duty leaf spring suspension
frame Beam	Main frame is height 400/500mm, Upper plate is 16mm, lower plate is18mm,middle is8+6mm
Tire Type and quantity	12R22.5 12units
Traction Pin	50mm or 90mm
Spare Wheel Bracket	2 pieces
Tool Box	1 Unit
Landing Gear	Two-speed, manual operation, heavy duty landing gear,28t
Brake system	Dual Line braking system ,none ABS.
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Painting	Color by customer's requirement
Packing	Polish with wax before shipping
Delivery way	Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume.
Delivery time	15 workdays after confirming order and receiving your deposit

If you want know more products about us

1.boxsemitrailer:sidewallsemitrailer,fencesemitrailer,cargosemitrailer
2.flatbedsemitrailer:lowbedsemitrailer,flatbedsemitrailerforcontainer
3.tankersemitrailer:fueltankersemitrailer,bulkcementtankersemitrailer
4.dumpsemitrailer:enddumpsemitrailer,sidedumpsemitrailer,flatbedtipper



FAQ
1.Doesyourcompanyisafactoryortradecompany?
Wehaveafactoryourself,weareonthisbusinessforfewyearsinChina.Our
factoryisveryfamousintheShandongChina.

2.Whatsthequalifyassuranceweprovidedandhowdowecontrolquality?
Weareatrailermanufacturerwithmorethen10years,wehavetensofthousands
ofclients,theyordermanytrailerseveryyear,andgiveusgoodfeedback,wecan
notfindevenoneexcusetomanufacturelowqualitytrailer.
WecanuseTradeAssuranceServicetodobusiness,TradeAssurancewill
ensureyoutheshippingontimeandtheproductsqualityisthesamewiththe
contract.

3.Howdoyoutransportthesemitrailers?
Wetransportthesemitrailersbybulkorcontainer.Ourfactorypossesses
long-termcooperationwithshipagencywhichcanprovideyoulowest
shippingfee.
