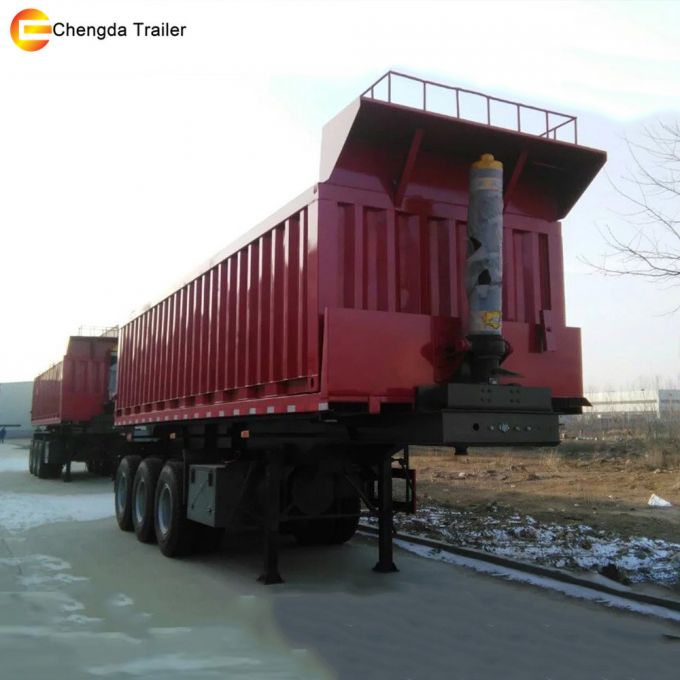

3 Axles 80ton Hydraulic End Dumper Tipper Trailer

3 Axles 80ton hydraulic End Dumper tipper Trailer

3 axles 80ton end dump trailer

Trailer Model	3 axles 80ton end dump trailer
Vehicular applications	Sand and pebble and mineral transport
Model	SCD9402Z
Overall dimension	11200mmX2550mmX3500mm
Inner Dimension	10000mmX2330mmX1780mm
Loading capacity	80T
Axle brand and number	3*13T FUWA BRAND
Kingpin	50#(2") or 90#(3.5")
Steel Spring	10/10/10 leaf spring suspension(16mm)
Suspension system	Common Mechanical suspension
The material of Main beam	Heavy duty and extra durability designed Ibeam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes. Top plate 20mm .bottom plate 20mm .middle plate 14mm .height:500mm
Lifting	1 unit HYVA214-7130 brand front lifting system,
Tyre and quantity	12.00R20 13sets(tri-angle or double star Brand)
Wheel rim	8.5 13 pcs
Landing gear	China brand.two-speed,manual operating ,heavy duty landing gear 28t
Thickness	bottom:8mm, side:6mm
Brake system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Electrical system	24V,7 pin socket,One set 6-core standard Cable
Light	Tail lamp with turn signal, brake light &reflector, side lamp etc
Tool box	1 set
Angle iron&iron pipe	Design according to Technician to better prevent the damaging
Truck cover	1 set(manual)
Spare tire carrier	2 sets
Painting	Complete chassis sand blasting to clean rust ,1coat of anti-corrosive prime,2coats of final paint

shipmentment:
BULK or RO Ro ship
