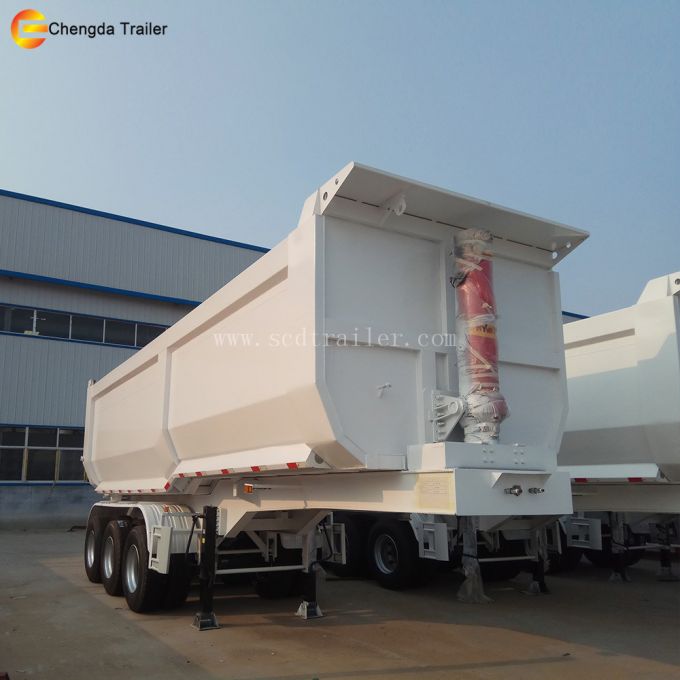

Tipper Box Size Optional Dump Semi Trailer Made in China

Tipper Box Size Optional Dump Semi Trailer Made in China


Technical parameters of Tipper Box Size Optional Dump Semi Trailer Made in China:

Tare weight	8.5T-10T
Payload	60T-80T(25m3-37m3)
Axle weight	14T/16T/20T per axle
Specification
Axle number	3
Axle brand	13ton FUWA axle
Suspension	Mechanical suspension
Kingpin	JOST50#/90# traction pin
Dimensions(L*W*H)	10950x2500X3900mm(outside) 10000x2300X600mm(inner)
Rim	9.00*22.5 zhengxing brand 12[ieces
Lifting system	Full set ofhyva hydraulic system
Steel spring	10pieces
Tire
Tire specs	12.00R22.5 triangle brand
Number of tire	12 pieces
Spare tire carriers	2 pieces
frame
frame beam	Upper and lower plate is 20mm.middle is 10mm(double/three plate) height is 500mm
frame floor	The thickness is 3mm flat bed
Brake
Brake brand	Kemi brand of china
Brake chamber	Two double and two single chamber(TKL brand)
ABS	Kemi brand of china (4s/2m)
Electrical system
Voltage	24v
Receptacle	7ways(7wire harness)
Light color
Side marker lamp	orange
Rear lamp	red
Turn signal lamp	orange
Landing gear	28ton standard

Company Information:

1. Shandong Chengda Trailer Manufacturer Co.,Ltd. established in 2005, is one of the qualified manufacturers of various trailers, like flatbed container semi trailer, low bed semi trailer, fuel tanker semi trailer, bulk cement semi trailer, side wall and fence cargo trailer, etc.
We are First Class agent of SINOTRUK ans sell all kinds of trucks.

2. Integrated production, scientific research&development and professional sales teams,
all those advantages could provide full service of trailers, semitrailers, tractor
head, Dump Truck, engineering machinery and trailer parts.

3. With high standard machinery and automatic equipment, powerful R&D team and elite
sales team, We have built along business relationship with many world famous firms such
as SINOTRUK, SHACMAN, FAW, etc.

4. In 2014, we enlarged our factory and add more prodution line. The sales valve in this year
increase in aboom way.





Our main products:

Trailers:
Flatbed(skeletal) container semi trailer, low bed semi trailer, end dump semi trailer, fuel tank semi trailer(carbon steel, stainless steel and aluminum alloy materials optional), bulk cement tanker semi trailer,cargo semi trailer, side wall semi trailer, fence semi trailer, LPG tank semi trailer, LNG tank semi trailer, car carrier semi trailer and so on.

Trucks:
Tractor truck head, tipping dump truck, Cargo truck, cement mixer truck, Fuel Tanker Truck, water tank truck, crane truck, pickup truck, mini truck, Van truck and so on.

Except for trucks and trailers, our company can also provide trailer parts and engineering machinery such as crane, road roller, paver, bulldozer, excavator etc.

Service:
Customers can enjoy great purchase process from our professional sales team. With professional and mature after-sales systems, our service to you does't end after you receive the cargo from our company, it is just anew beginning of our cooperation.
Main Markets: Our company has enjoyed great preference by customers from African, South America, middle east, North Asia, South Asia and South east Asia. So far we have export to Philippines, Malaysia, Indonesia, Bangladesh, Myanmar, Vietnam, Angola, Tanzania, Congo, Nigeria, Mozambique, Uganda, Fiji, Ethiopia, Somalia, Iraq, Djibouti, Namibia, Zimbabwe, Liberia, Chile, Peru, Uruguay, Argentina etc.
Our company's future vision: become aglobally-famous and long-standing corporation.
Our company's Mission: Share interests and happiness with all partners.

1. One year guarantee for the main parts
2. Chinese government verified manufacturer, with more than 10 years professional experience.
3. Small order accepted
4. Custom-made according to your requirements

Certifications:

ISO, CCC, WMI, etc




FAQ:

1. Are you amanufacturer or trading company?
Manufacturer

2. Can it be custom-made?
Yes sure.

3. Is there discount?
Yes we have promotion and discount is according to order quantity.


Packaging &Shipping:

Nude and wax, shipped in container, bulk or RO-RO ship.
We always use the best packaging solution to decrease transportation cost and give you the very competitive price.

We are waiting for you to get this ideal product and best service


Contact

Angela Huang (Sales Engineer)
My mobile:0086 18253112970
