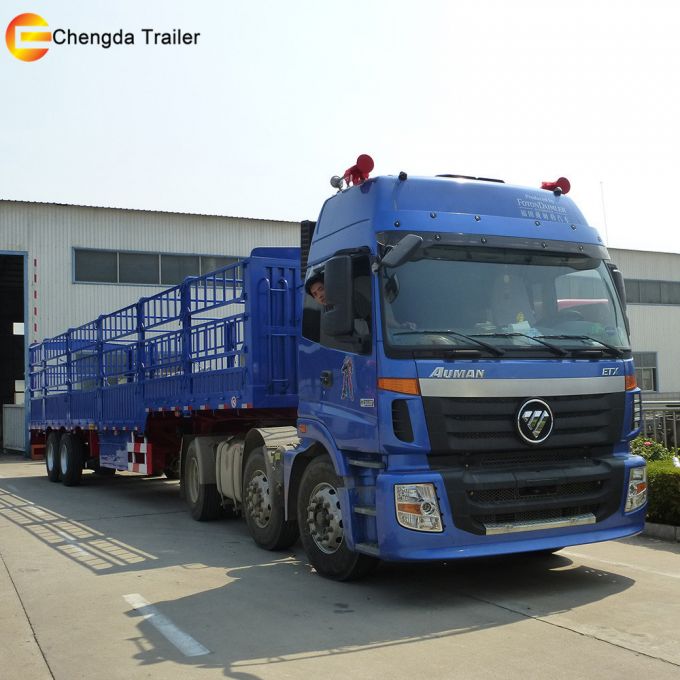

Popular Fence Cargo Semi Trailer

Specification for 3 axles fence semi trailer

Trailer Model	3Axles seside wall semi trailer
Function	Carry bulk goods
Tare Weight(KG)	6900
Loading Capacity(KG)	40000--60000
Total Dimensions (L*W*H) mm	13000*2500* 3800
Main Beam	The height of the beam is 500 mm,the thickness of upper plate is16mm,down plate is 18mm,middle plate is 10mm
AxleNumber	3 FUWA 13Ton Axle
Fenceheight	1600/1800mm
Tire Type and Quantity	12.00R22.5 tubeless, 12
Suspension System	Standard Mechanical suspension
SteelSpring	10/10 leaf spring suspension
BrakingSystem	Dual Line braking system (none ABS)
Brake air chamber	Six big double air chamber
Electrical System	1.Voltage:24V 2.Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable
Tool box	1 Standard
Traction pin	50#or 90#, removeable
Landing Gear	Standard28Ton,external
Container Twist Locker	12 Screw type
Spare Wheel Bracket	2 pieces
painting	Optional(yellow,red,white,blue etc.)
Packing	Polish with wax before shipping

Chengda trailer manufacturing co., established from 2005, has obtained CCC BV ISO WMI certificates.
our main products include flatbed semi trailer, low bed semi trailer, oil tanker semi trailer and cementtanker trailer. also we are agent for sinotruck. if you need them. tell me your mail address, quotation will arrive your side sooner.
