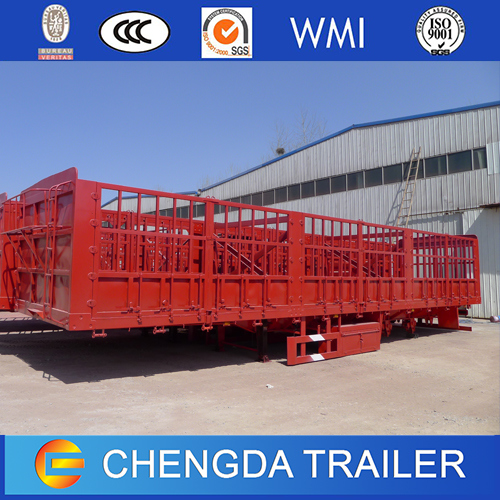

60ton China 3 Axles Fence Cargo Livestock Trailer

3 Axles 40T fence Semi trailer

Specification :

Trailer Model	3Axlesseside wall semi trailer
Function	Carry bulk goods
Tare Weight(KG)	6900
Loading Capacity(KG)	40000--60000
Total Dimensions (L*W*H) mm	13000*2500* 3800
Main Beam	The height of the beam is 500 mm,the thickness of upper plate is16mm,down plate is 18mm,middle plate is 10mm
Axle Number	3 FUWA 13Ton Axle
Fence height	1600/1800mm
Tire Type and Quantity	12.00R22.5 tubeless, 12
Suspension System	Standard Mechanical suspension
Steel Spring	10/10 leaf spring suspension
Braking System	Dual Line braking system (none ABS)
Brake air chamber	Six big double air chamber
Electrical System	1.Voltage:24V 2.Receptacle: 7ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable
Tool box	1 Standard
Traction pin	50# or 90#, removeable
Landing Gear	Standard28Ton,external
Container Twist Locker	12 Screw type
Spare Wheel Bracket	2 pieces
painting	Optional(yellow,red,white,blue etc.)
Packing	Polish with wax before shipping

Since Established in 2005, Shandong Yuncheng Chengda Trailer Manufacturer Co.,Ltd is the professional manufacturers, we integrating production, scientific research&development and sales.

Involving in semi-trailers and trailer parts, with 50 million dollars and revenue almost 600 million
RMB, we are aleading provider in this industry.

Wehave 3C certification and BV, ISO, WMI certification.
