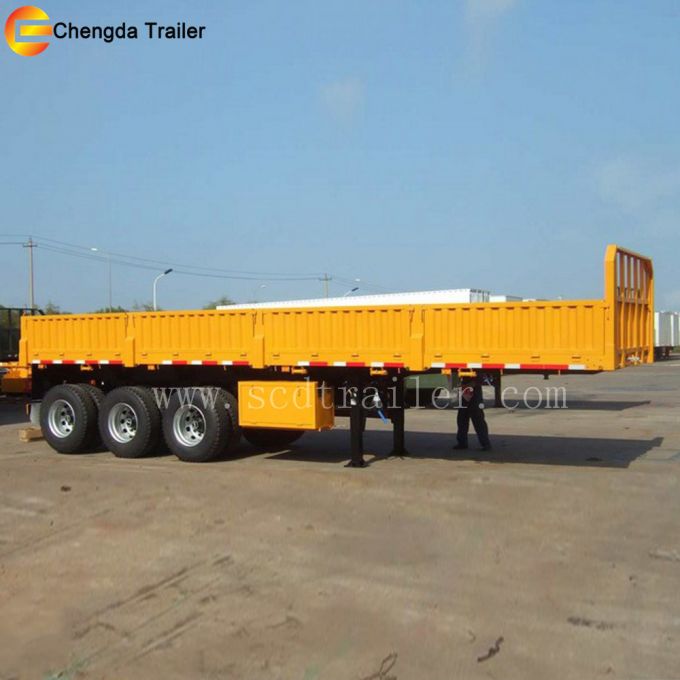

Factory Sale 3 Axles Cargo Trailer

1.Specification for 3 axles 50t cargo semi trailer



Product Specification

Trailer Model	3Axles seside wall semi trailer
Function	Carry bulk goods
Tare Weight(KG)	6900
Loading Capacity(KG)	40000--60000
Total Dimensions (L*W*H) mm	13000*2500*1500
Main Beam	The height of the beam is 500 mm,the thickness of upper plate is16mm,down plate is 18mm,middle plate is 10mm
AxleNumber	3 FUWA 13Ton Axle
side wall height	600mm 800mm
Tire Type and Quantity	12.00R22.5 tubeless, 12
Suspension System	Standard Mechanical suspension
SteelSpring	10/10 leaf spring suspension
BrakingSystem	Dual Line braking system (none ABS)
Brake air chamber	Six big double air chamber
Electrical System	1.Voltage:24V 2.Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable
Tool box	1 Standard
Traction pin	50#or 90#, removeable
Landing Gear	Standard28Ton,external
Container Twist Locker	12 Screw type
Spare Wheel Bracket	2 pieces
painting	Optional(yellow,red,white,blue etc.)
Packing	Polish with wax before shipping

as a gent for trucks and trailer manufacturer for 11 years, we can offer you best price.
Our main market includes africa, south Asia, middle east, and south America.
Besides of breach office in africa, we also have agents in our main market.
If you are interested in our truck, pls kindly contact me.
