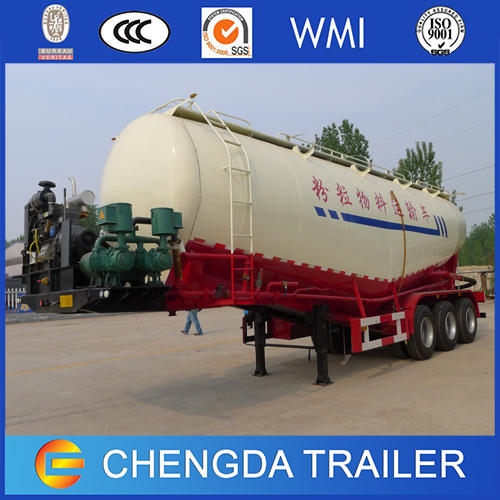

3 Axle 45m3 Bulk Cement Tank Semi Trailer with Air Compressor and Desiel Engine

Product Description

SPECIFICATION Of 60m3 bulk cement tanker trailer

Product name:60CBM bulk cement tanker trailer
Tank Body
Shape	V shape
Dimension	13000mm2490mm3990mm
Tare weight	11ton
Total Volume(m3)	60
Tanker Body Material	5mm
End Plate	6mm
Diesel Engine	WEICHAI 4102
Compressor	12 m³
Manhole Cover	Cabon steel500mm
Discharging Valve	Diameter is 4inch
Discharging Pipe	4 inch rubber hose, 1pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Weldding Design ,Q345 carbon steel
Axle	2 or 3axles, 16T,FUWA brand
Landing Gear	28ton type
King Pin	2.00 or 3.5 inch bolt-in king pin
Suspension	leaf spring suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
Pneumatic Braking System	WABCO RE 6relay valve; T30/30+T30 Spring brake chamber
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	1100R20 tire, 12units, Triangle brand
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or Ro-Ro ship
