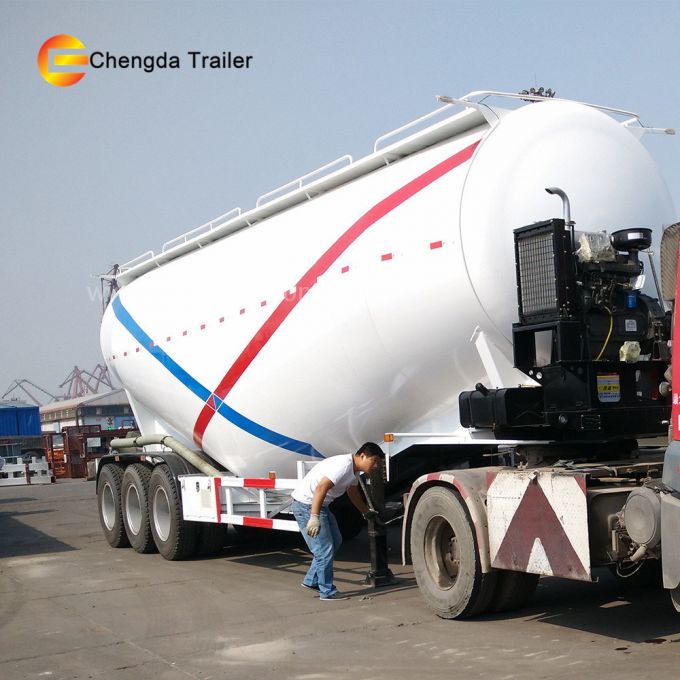

40t 50t 60t V Shap Tri-Axles Bulk Cement Tanker Semi Trailer

specification for bulk cement tanker trailer

Trailer Model
Overall Dimension(Lx W x H)(mm)	12000×2500×3700
Payload	45 ton
Volume	70 CBM
Axle Brand	Standard 13 ton
Axle Number	3
Wheelbase(mm)	8000+1310+1310
Suspension system	Common Mechanical suspension
Steel Spring	-/16/16/16leaf spring suspension
The material of main beam	The height of the beam is 500 mm, upper plate is16mm, down plate is18mm, middle plate is 10mm.
Tank thickness	4 mm
Channel beam	4 mm
Tire Type and quantity	12R22.5 12pieces
Traction Pin	90mm
Spare Wheel Bracket	2 pieces
Ladder	Yes
Tool Box	1 standard
access door	2 sets
The diesel engine	Standard extraposition4102
Steel rim	12 pieces
Landing Gear	Standard single 28ton
Tank	Single
air compressor	Standard 12 CBM
Brake system	Dual Line braking system ,
Brake block	3 pieces ,dilated
Brake air chamber	Six double air chamber
Electrical system	1. Voltage: 24v2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard	According to customer's requirement
Painting	Color by customer's requirement
Packing	Polish with wax before shipping
Usage	Is mainly used fortransporting drybulk cargo, suck as cement, flour, grain, Flexible,convenient operation, working efficiency, large volume, make full use of space and the advantages
