3 Axles 45000 Liters Fuel Tanker Trailer
- USD 19000.00 /Unit
- 1 Unit
- 14 Unit
- 21 days
DIMENSIONS | |||
Tare weight | 10500kg | ||
Volume | 42m3 | ||
OverallSize | 11900mm*2500mm*3900mm | ||
SPECIFICATION | |||
Tank body | Q235/4mm steel | ||
End plate | Q235/6mm steel sheet | ||
Axle | 3 axle13TFuwaBrand | ||
Suspension | Mechanical Suspension | ||
Leaf spring | Standard | ||
Manhole cover | 500mm manhole cover .2 sets | ||
Tire | 12R22.512pcs | ||
Discharge valve | 4disc valve | ||
Dischage pipe | 4seamless steel tube | ||
Kingpin | 2bolt-in king pin | ||
Landing gear | Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t | ||
Bottom valve | One piece | ||
Compartment | three | ||
Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks | ||
Painting | Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint | ||
Accessories | One standard tool box.fire extinguisher 2pcs | ||
Main beams | Opting for high tensile steel Q345B welded by automatic submerged-arc processes | ||
Remark | Wax spray | ||

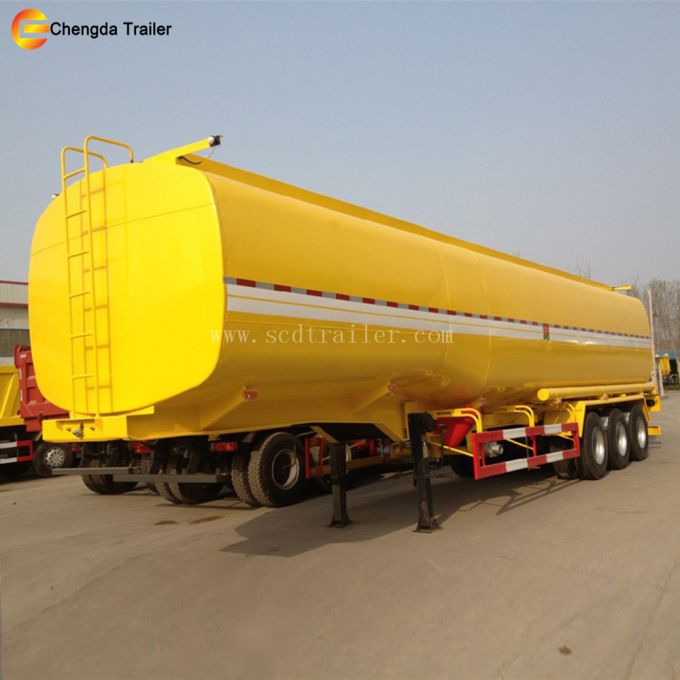

Details pics for tanker semi trailer
Ourcertification for tanker trailers
