3 Axles Tanker Trailers for Sale

specification for tanker trailers for sale

	DIMENSIONS
	Tare weight	10500kg
Volume	42m3
Overall Size	11900mm*2500mm*3900mm
SPECIFICATION
Tank body	Q235/4mm steel
End plate	Q235/6mm steel sheet
Axle	3 axle13T Fuwa Brand
Suspension	Mechanical Suspension
Leaf spring	Standard
Manhole cover	500mm manhole cover .2 sets
Tire	12R22.5 12pcs
Discharge valve	4 disc valve
Dischage pipe	4 seamless steel tube
Kingpin	2 bolt-in king pin
Landing gear	Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t
Bottom valve	One piece
Compartment	three
Braking system	RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Painting	Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box.fire extinguisher 2pcs
Main beams	Opting for high tensile steel Q345B welded by automatic submerged-arc processes
Remark	Wax spray

	DIMENSIONS
	Tare weight	10500kg
Volume	42m3
Overall Size	11900mm*2500mm*3900mm
SPECIFICATION
Tank body	Q235/4mm steel
End plate	Q235/6mm steel sheet
Axle	3 axle13T Fuwa Brand
Suspension	Mechanical Suspension
Leaf spring	Standard
Manhole cover	500mm manhole cover .2 sets
Tire	12R22.5 12pcs
Discharge valve	4 disc valve
Dischage pipe	4 seamless steel tube
Kingpin	2 bolt-in king pin
Landing gear	Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t
Bottom valve	One piece
Compartment	three
Braking system	RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Painting	Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box.fire extinguisher 2pcs
Main beams	Opting for high tensile steel Q345B welded by automatic submerged-arc processes
Remark	Wax spray

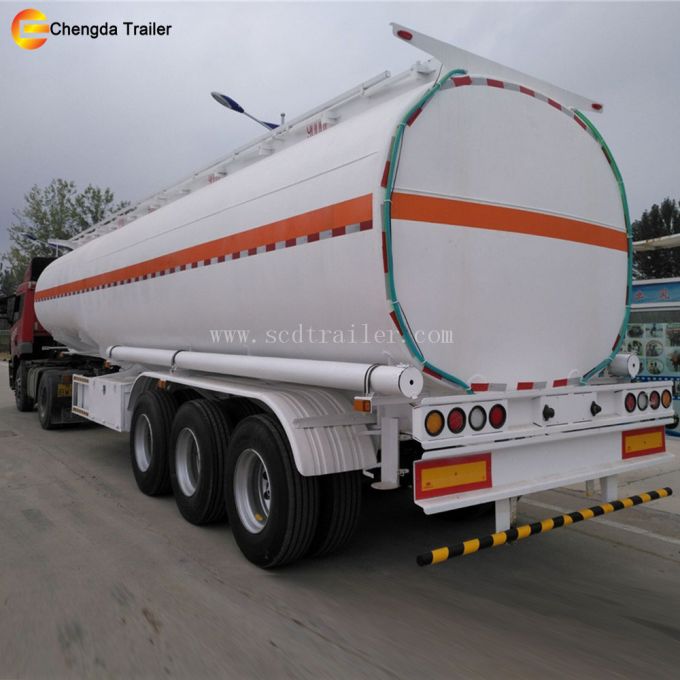

Details pics for tanker semi trailer
