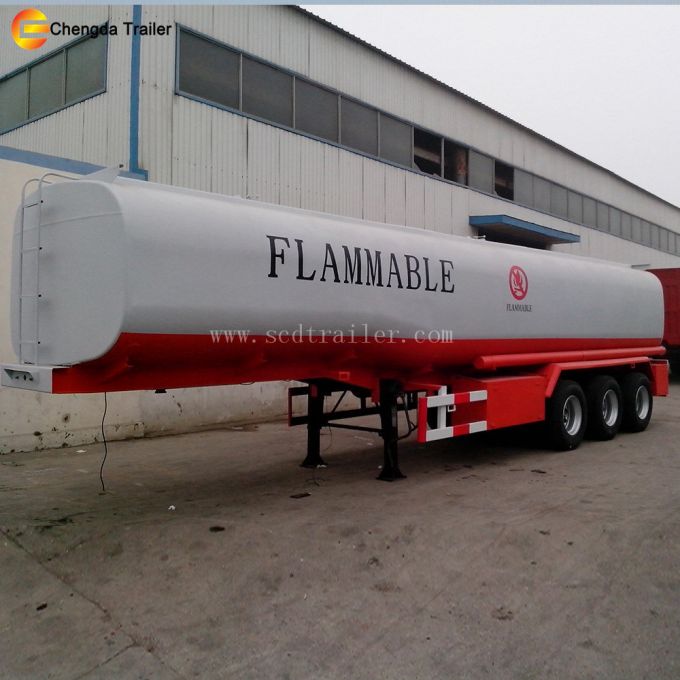

Large Capacity 3 Axles 40000L Oil Tanker Trailers

specification for tanker trailers for sale

	DIMENSIONS
	Tare weight	10500kg
Volume	42m3
Overall Size	11900mm*2500mm*3900mm
SPECIFICATION
Tank body	Q235/4mm steel
End plate	Q235/6mm steel sheet
Axle	3 axle13T Fuwa Brand
Suspension	Mechanical Suspension
Leaf spring	Standard
Manhole cover	500mm manhole cover .2 sets
Tire	12R22.5 12pcs
Discharge valve	4 disc valve
Dischage pipe	4 seamless steel tube
Kingpin	2 bolt-in king pin
Landing gear	Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t
Bottom valve	One piece
Compartment	three
Braking system	RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Painting	Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box.fire extinguisher 2pcs
Main beams	Opting for high tensile steel Q345B welded by automatic submerged-arc processes
Remark	Wax spray

	DIMENSIONS
	Tare weight	10500kg
Volume	42m3
Overall Size	11900mm*2500mm*3900mm
SPECIFICATION
Tank body	Q235/4mm steel
End plate	Q235/6mm steel sheet
Axle	3 axle13T Fuwa Brand
Suspension	Mechanical Suspension
Leaf spring	Standard
Manhole cover	500mm manhole cover .2 sets
Tire	12R22.5 12pcs
Discharge valve	4 disc valve
Dischage pipe	4 seamless steel tube
Kingpin	2 bolt-in king pin
Landing gear	Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t
Bottom valve	One piece
Compartment	three
Braking system	RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Painting	Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box.fire extinguisher 2pcs
Main beams	Opting for high tensile steel Q345B welded by automatic submerged-arc processes
Remark

about us:
Founded in 2005, Chengda Trailer Manufacturing is specialized in many kinds of semi trailer, provide high quality products and best service. We're agent of Sinotruk as well,tractor truck,Dump Truck,Oil Tanker Truck is our main products.We welcome customers from all walks of life to visit our facotry and build the cooperative relationship with us.

Chengda ,trustworthy!

1. the satisfied product with high level standard;
2. the full aspect service from order to shipping;
3. give customer most suitable advice when customer has special needs for your transportation or construction;
4. help customer to get the related spare parts of trailer or tractors if customer needs.
we are waiting for you to get this ideal products and best service .
5. Feel free to contact us. We guarantee the best quality service.
6. Customer satisfaction is our greatest happiness.


1.Does your company is afactory or trade company?
We have afactory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.

2.Whats the qualify assurance we provided and how do we control quality?
1. Established aprocedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed aprocedure which identifies the inspection and test status of all items at all stages of the manufacturing process.

2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.

3. What's your MOQ?
One unit trailer or truck.

4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.
5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
6.How to contact us?

Company Name: Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd.
Address: 1603 Room, Building 3, Jingdu Guoji Building,Shunhedong Street,Shizhong Zone, Jinan City, Shandong Province, P.R.China
Contact:Cathy
TEL: +86-531-69985132
FAX: +86-531-69985133
