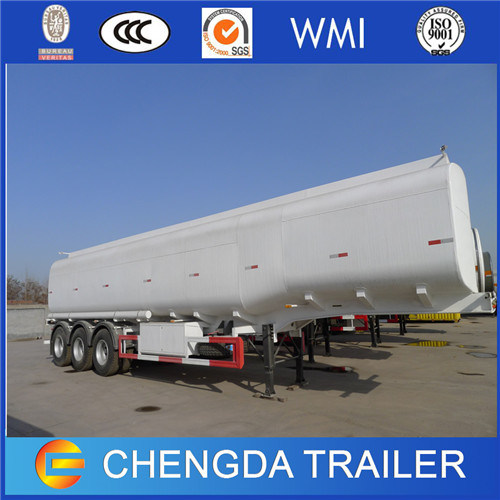

60m3 Axles 4 Compartments Fuel Tanker Trailer

SPECIFICATION Of fuel tanker trailer 60CBM

fuel tanker trailer 60CBM
Dimension(Lx WxH)(unloaded)(mm)		11950*2495*3950mm
Tare Weight(KG)		9900
Loading Weight( KG)		40000
Total Weight(KG)		50000
Tank capacity( CBM )		42m3
Volume(L)		42000
Medium		Fuel,petrol,diesel
SPECIFICATION
Tank Material			steel
Tank thickness(mm)			6
Main beam			The height of the beam is 500 mm, upper plate is16mm, down plate is 18mm,middle plate is 10mm.
Approaching angle/Departure angle(°)			-/18
Axle Brand	13ton axle
Axle Number	3
Compartment	3
Manholes	3
Spill Discharges	3
Walkway	on the top
Wheelbase(mm)	1320/1320
Suspension system	Leaf spring suspension
Steel Spring	10/10/10 leaf spring suspension
Tire Type and quantity	12R22.512units
Traction Pin	90mm
Spare Wheel Bracket	2 pieces
Rims	Steel
Front Fitting Radius (mm)	1760
Tool Box	1 Standard
Landing Gear	Standard 28ton
Brake system	Dual Line braking system ,none ABS.
Brake air chamber	Six double chamber
Electrical system	1. Voltage: 24v2. Receptacle: 7ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard	A bit higher from the tire
Painting	Optional

What we can do for customer:

1. the satisfied product with international standard;

2. the full aspect service from order to shipping;

3. give customer most suitable advice when customer has special needs for your transportation or construction;

4. help customer to find abetter shipping and lower the cost of shipping if customer needs.


we are waiting for you to get this ideal products and best service


Contact:

Li Bin (Sales Engineer)

Mobile: +86 18663721750
