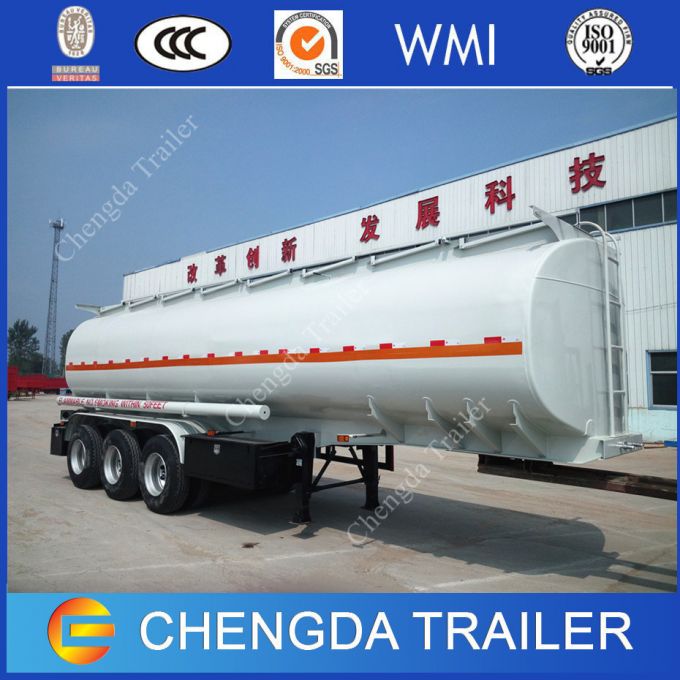

3 Axles Diesel Fuel Gasoline Petrolum Tanker 42000L 45000L Oil Tanker Trailers Dimensions
- USD 13000.18 /Unit
- 1 Unit
- 24 Unit
- 24 days
3 Axles fuel tanker semi trailer | |
Overall Dimension(LxW xH) | 11900x2500x3800mm |
Tare Weight(KG) | 8350 |
Loading Weight( KG) | 40000 |
Tank capacity( CBM ) | 45 |
Volume(L) | 45000 |
Medium | Fuel/other liquid(corrosive materials) |
Tank body thickness(mm) | Stainless 3164mm steel |
End plate | Stainless 3166mm steel |
Main beam | Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
Axle Brand | FUWA 13ton axle |
Axle Number | 3 |
Compartment | 3 |
Manhole covers | 500mm manhole cover .3 sets with 3breather valve. |
Discharge valve | 4 disc valve |
Dischage pipe | 4 seamless steel tube |
Spill Discharges | 1at the rear |
Bottom valve | 1 set |
Walkway | on the top |
Suspension system | Leaf spring suspension |
Steel Spring | 10/10/10 leaf spring suspension |
Tire Type and quantity | 295/80R22.5(12 units) |
Traction Pin | 90mm |
Spare Wheel Bracket | 2 pieces |
Rims | Steel |
Tool Box | 1 Standard |
Landing Gear | two-speed,manual operating ,heavy duty landing gear 28T |
Brake system | Without ABS, brake outside |
Brake air chamber | 6 double chamberT30/30 |
Electrical system | 1. Voltage: 12v2. Receptacle: 7ways (7 wire harness) |
Tail lamp with turn signal, brake light &reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Side Guard | A bit higher from the tire |
Painting | Polished but Not painting |
Q: Are you manufacturer or trading company?
A: We are the manufacturer since 2005.
Q: What's the features of your semi trailer?
A: The frame beam of the trailer is Q345 high standard carbon steel, it's welded by the submerged welding machine, and polished by shot blasting machine.
Q: Which kind of parts do you use? Are they durable and quality guaranteed?
A: For exporting, we only use WABCO brake valve, JOST kingpin and landing legs. BPW axle is also optional
Q: Do you have warranty of your trailer? How about payment items, and MOQ?
A: We have 12 month quality guarantee for all of our semi trailers,
A: Our payment items are TT or L/C. Our MOQ is one unit.
Q: Why we should choose you as there are many suppliers in Alibaba?
A: 1. We are one of the china leading trailer manufacturers
2.100% QC inspection before shipment
3. Best quality &Best service with competitive price
Contact way:
Attn:Alice
Tel: 0086 182 5311 2969
Shandong Chengda Trailer Manufacturing Co., Ltd. Established in 2005 is one of the qualified manufacturers of various trailers.
-
