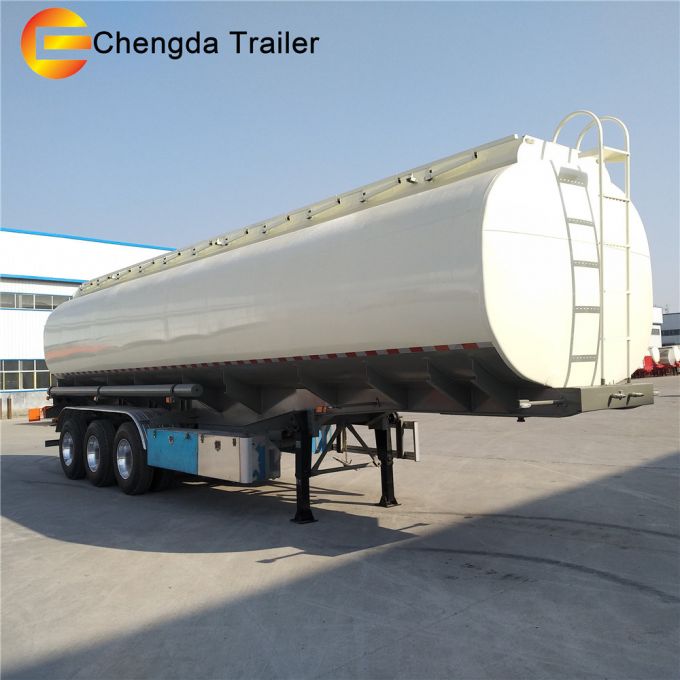

2018 Chinese 40000L 42000L 45000L Fuel Oil Tanker Trailer

3 AxlesPetrol Tanker Semi Trailer

Dimension(Lx WxH)(unloaded)(mm)

11950*2495*3950mm

Tare Weight(KG)

9900

Loading Weight( KG)

40000

Total Weight(KG)

50000

Tank capacity(CBM)

42m3

Volume(L)

42000

Medium

Fuel,petrol,diesel

SPECIFICATION

Tank Material

steel

Tank thickness(mm)

6

Main beam

The height of the beam is 500 mm, upper plate is16mm,

down plate is18mm,middle plate is10mm.

Approaching angle/Departure angle(°)

-/18

Axle Brand

FUWA13ton axle

Axle Number

3

Compartment

3

Manholes

3

Spill Discharges

3

Walkway

on the top

Wheelbase(mm)

1320/1320

Suspension system

Leaf spring suspension

Steel Spring

10/10/10 leaf spring suspension

Tire Type and quantity

12R22.512units

Traction Pin

90mm

Spare Wheel Bracket

2 pieces

Rims

Steel

Front Fitting Radius (mm)

1760

Tool Box

1 Standard

Landing Gear

Standard 28ton

Brake system

Dual Line braking system ,none ABS.

Brake air chamber

Six double chamber

Electrical system

1. Voltage: 24v2. Receptacle: 7ways (7 wire harness)

Tail lamp with turn signal, brake light &reflector,
side lamp etc.

One set 6-core standard Cable.

Side Guard

A bit higher from the tire

Painting

Optional
