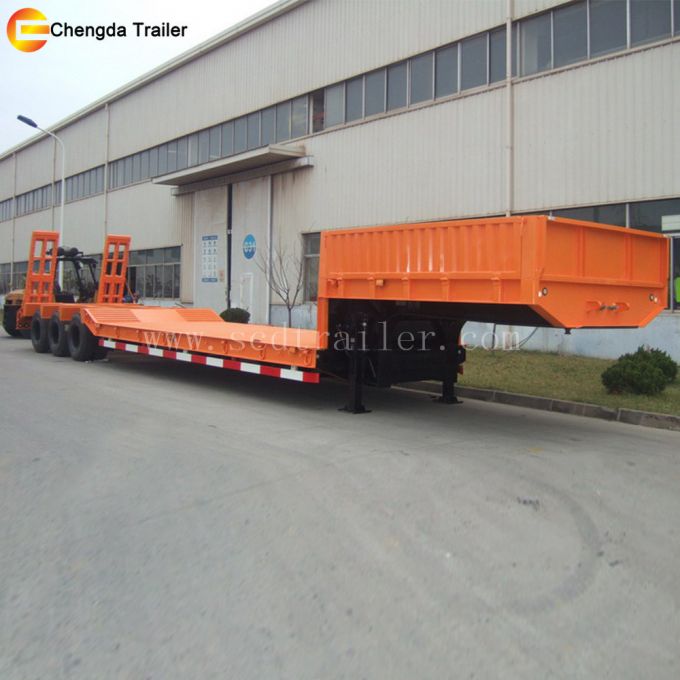

60ton Tri Axles Lowbed Lowboy Low Bed Truck Trailer

specification for low bed semi trailer

Trailer Model	3 Axles 60t Low Bed Semi Trailer
Function	Tractor and excavator transportation
Overall Dimension (L*W *H)(mm)	13000*3000*1700
Tare Weight(KG)	6500
Loading Capacity(KG)	60000
Axle Brand	BPW Axle
Axle Number	3
Suspension System	Standard Mechanical suspension
Steel Spring	10/10/10 leaf spring suspension
Main Beam	The height of the beam is 500 mm,the thickness of upper plate is16mm,down plate is 18mm,middle plate is 10mm.
Floor	4mm
Tire Type and Quantity	11.00R2012units
Traction Pin	50# or 90#, removeable
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Landing Gear	Standard 28Ton, external
BrakingSystem	Dual Line braking system (none ABS)
Brake air chamber	Six big double air chamber
Electrical System	1. Voltage: 24v 2. Receptacle: 7ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard	According to customer's requirement
Painting	Optional(yellow,red,white,blue etc.)
Packing	Polish with wax before shipping

this product is on promotion now, if you are interested with our products, pls contact me.
