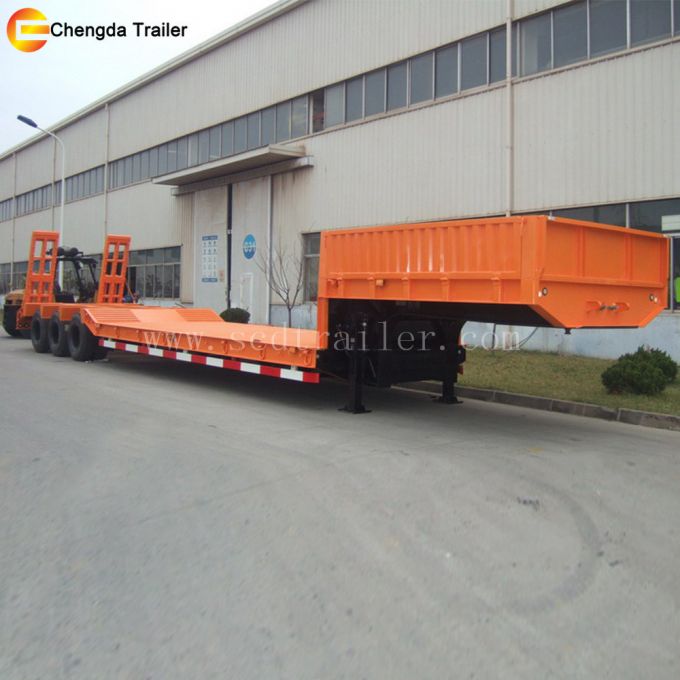

3 Axles 60 Ton Lowboy

Trailer Model

3 Axles60t Low Bed Semi Trailer

Function

Tractor andexcavatortransportation

Overall Dimension

(L*W *H)(mm)

13000*2500*1700

Tare Weight(KG)

6500

LoadingCapacity(KG)

60000

Axle Brand

BPW Axle

AxleNumber

3

SuspensionSystem

Standard Mechanical suspension

Steel Spring

10/10/10 leaf spring suspension

MainBeam

The height of the beam is 500 mm,the

thickness of upper plate is16mm,down plate

is 18mm,middle plate is 10mm.

Floor

4mm

Tire Type

andQuantity

11.00R20 12units

Traction Pin

50# or90#, removeable

Spare Wheel Bracket

2 pieces

Tool Box

1 Standard

Landing Gear

Standard 28Ton, external

BrakingSystem

Dual Line braking system(none ABS)

Brake air chamber

Six big double air chamber

ElectricalSystem

1. Voltage: 24v

2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Side Guard

According to customer's requirement

Painting

Optional(yellow,red,white,blue etc.)

Packing

Polish with wax before shipping
