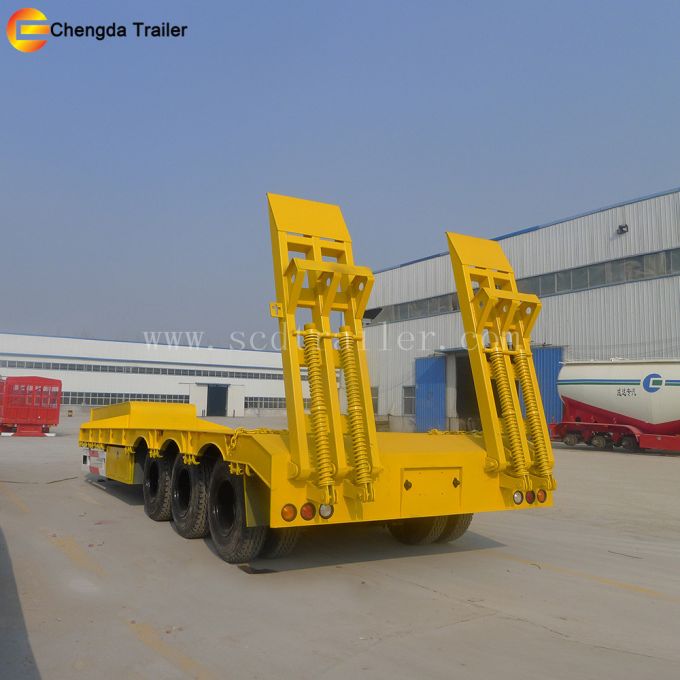

Excavator Trailer Low Loader Semi Trailer 12 Wheels Lowboy

Main specification

Type

3 Axles 60tons heavy duty Low Bed lowboy Truck Trailer for Sale

Model number

SCD9400TDP

Function

Transport heavy machine

Overall dimension

13000x3000x1500mm

Working plate

9000x3000x1500mm

Loading weight

60000kg

Main beam

Material is Q345B, The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm,middle plate

is 10mm.

Side beam

16mm channel steel

Chassis

Traction pin

JOST Brand, optional 2" or 3.5"

Land gear

Standard 28ton

Axle

13ton for each axle

Axle brand

FUWA Brand axle three axles

Suspension type

3 axle mechanical suspension

Laeaf spring

10/10/10 90mm*13mm*10pcs

Rim

8.5-22.5 12pcs

Tire

1100R20 triangle brand

Tire quantity

12 units

frame

platform thickness

3mm

Accessories

valve

WABCO VALVE

Brake Chamber

6 big chamber brake system

Tool box

1 unit 1m*0.5m*0.5m

Spare wheel carrier

2 units

Side marker lamp

LED type

Voltage

24V

Receptacle

7ways (7 wire harness)

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
