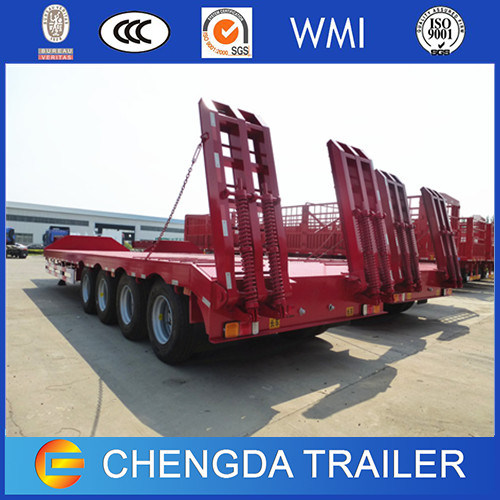

4 Axle Lowbed Low Boy Low Deck Lowboy Trailer 100 Ton

4 Axle lowbed low boy low deck Lowboy Trailer 100 Ton


1.Scientificdesignbyprofessionalengineer
2.Productioncostcontroltoprovidetheverybestpriceforcustomer
3.Long-termsparespartssupply
4.OEMaccepted

Model number	SCD9400TDP
Total size	14,000x3,000x1,650 mm
Working size	10,000x3,000x1,300 mm
Loading weight	80,000 kg
Departure angle	16
Axle brand	16 ton FUWA Brand axle
Axle number	Three
Wheelbase	8,580+1,310+1,310 mm
Suspension system	leaf spring suspension
Steel spring	10/10/10 leaf spring suspension
Main beam	Beam height 500 mm Upper plate 20 mm Down plate 20 mm middle plate 14 mm
Platform plate	5mm diamond plate
Tire type and quantity	Radial tire 11.00R20 x 12 units
Ladder	with ladder
Tration pin	2" or 3.5"
Landing gear	Standard 28T
Brake system	Dual line braking system
Brake air chamber	Six big dual chamber
Spare wheel bracket	2 pieces
Painting	One coat anti-rust prime, two coats final paint
Light	Tail lamp with turn singal, brake light& reflector, side lamp, etc

Ifyouareinterestedinbulkcementtrailer,pleasesendyourinquirywithouthesitate.
Youcouldcontactmebybelowinformation:
Contact:RonSi
Phone:+86-15169170647
