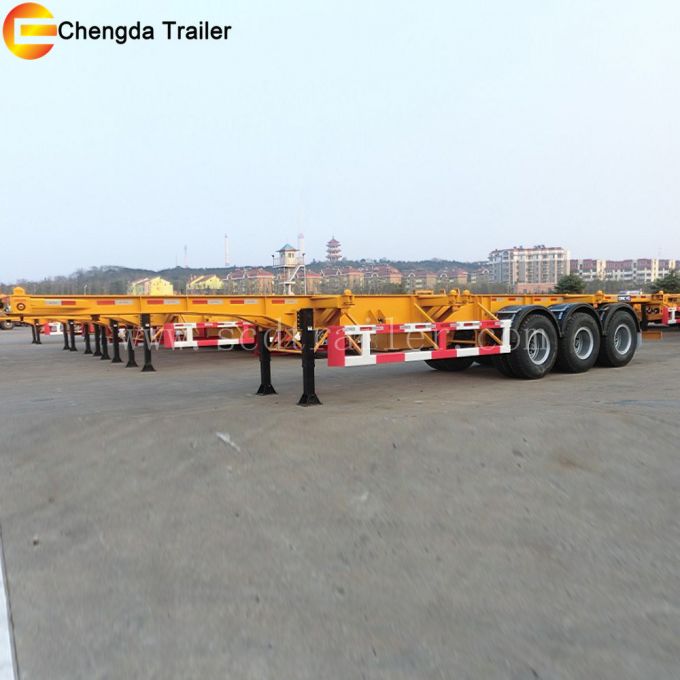

3 Axle 40FT Skeleton Container Semi Trailer for Sale
- USD 11000.00 /Unit
- 1 Unit
- 81 Unit
- 16 days
Trailer Model | container flatbed trucks trailer 3axle, tractor trailer wheel rims | |
Function | 1x40ft container or 2x20ft container. Or carry other stuff. | |
Overall Dimension | 12500*2500*1550mm | |
Payload | 40000kg | |
Total Weight | 50000kg | |
Specification: | ||
Axle Brand | FUWA Brand 13TON Axle, Optional BPW | |
Axle number | three | |
Wheelbase(mm) | 6260+1310+1310 | |
Suspensionsystem | MechanicalSuspension | |
Steel Spring | 10/10/10 leaf spring suspension | |
Container Twist Locks | 12pieces | |
Traction Pin | 90mm/50mm | |
Tire specs. | 12R22.512units | |
Number of Tire | 13 pieces | |
SpareWheel Bracket | 2 piece | |
frame:(specs. And materials) | Main beam height is 500mm | |
frame Beam | Upper plate is 14mm,downplate is 16mm,middleplateis 8mm. | |
Platform bed | 3mmdiamond steel plate | |
LandingGear | Chinese brand28ton | |
Brake system | Dual Line braking system ,optional ABS. | |
Brake Chamber | Four double and two single chamber, optional WABCO | |
Electricalsystem: | ||
Cable | One set 6-core standard Cable. | |
Voltage | 24V | |
Receptacle | 7 ways(7 wire harness) | |
Light: | Tail lamp with turn signal, brake light &reflector, side lamp etc. | |
FACTORY ASSEMBLY LINE VIEW
FAQ
1Why you choose us?
Weare leadingtrailer manufacturer which have more than13years
produce experience.
Good at control frame quality which is the basic of trailer lifetime.
Choose us you chooseprofessional transportation scheme supplier
2How to trust us?
The good faith management is our philosophy, and welcome visits our
factoryat any time.
We are also willing cooperate with your certifying authority such asWMI BV CCC ISO etc.
3 Where is our location?
Jinan City ShandongProvince P.R. China
4 How to contact us?
Contact:
Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd.
Vanessa Lv
TEL: +86-15853165591
Web:www.scdtrailer
Keep Trust, keep Passion, welcome visit Chengda Trailer!
-
