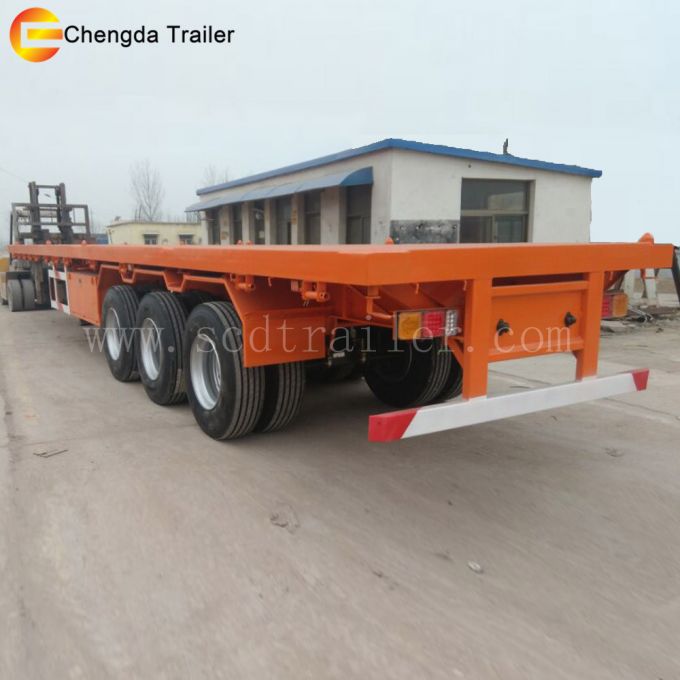

Chengda Flat Bed 40t 40FT 3 Axles Container Trailer

Specification for 3axles 40ft container semi-trailer

Our main products include low bed semi trailer, flatbed semi trailer, fuel tanker semi trailer, cement tanker semi trailer, tanker.
truck series: sinotruck howo series. such as tractor truck, Dump Truck, Fuel Tanker Truck, water Tanker truck, cement tanker truck. and so on.
as atrailer manufacturer and agent for sinotruk. we can offer best price for you.

Trailer Model	3Axles 40ft container semi trailer
Function	2x 20ft and 1x40ft container or other goods transportation
Tare Weight(KG)	6900
Loading Capacity(KG)	40000
Total Dimensions (L*W*H) mm	13000*2500*1500
Main Beam	The height of the beam is 500 mm,the thickness of upper plate is16mm,down plate is 18mm,middle plate is 10mm
Axle Number	3
Axle Brand	FUWA 13Ton Axle
Tire Type and Quantity	12.00R22.5 tubeless, 12
Suspension System	Standard Mechanical suspension
Steel Spring	10/10 leaf spring suspension
Braking System	Dual Line braking system (none ABS)
Brake air chamber	Six big double air chamber
Electrical System	1.Voltage:24V 2.Receptacle:7 ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable
Tool box	1 Standard
Traction pin	50# or 90#, removeable
Landing Gear	Standard28Ton,external
Container Twist Locker	12 Screw type
Spare Wheel Bracket	2 pieces
Painting	Optional(yellow,red,white,blue etc.)
Packing	Polish with wax before shipping

Chengda trailer manufacturing co., established from 2005, has obtained CCC BV ISO WMI certificates.
our main products include flatbed semi trailer, low bed semi trailer, oil tanker semi trailer and cementtanker trailer. also we are agent for sinotruck. if you need them. tell me your mail address, quotation will arrive your side sooner.

ConTACT PERSON;

Cathy

Chengda trailer manufacturing, China
Web:www.Scdtrailer.Com
