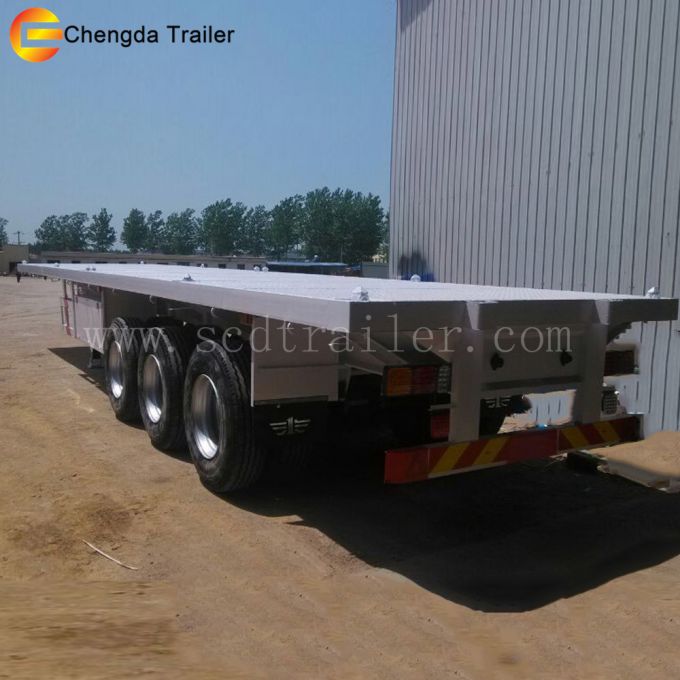

Chengda Trailer Factory Sale 3 Axles 40ft Container Semi-Trailer

Trailer Model

3Axles 40ftcontainer semi trailer

Function

2x 20ft and 1x40ft container or other goods transportation

Tare Weight(KG)

6900

Loading Capacity(KG)

40000

Total Dimensions

(L*W*H) mm

13000*2500*1500

Main Beam

The height of the beam is 500 mm,the thickness of upper plate is16mm,down plate is 18mm,middle plate is 10mm

AxleNumber

3

AxleBrand

FUWA 13Ton Axle

Tire Type and Quantity

12.00R22.5 tubeless, 12

Suspension System

Standard Mechanical suspension

SteelSpring

10/10 leaf spring suspension

BrakingSystem

Dual Line braking system (none ABS)

Brake air chamber

Six big double air chamber

Electrical System

1.Voltage:24V

2.Receptacle: 7ways (7 wire harness)

Tail lamp with turn signal, brake light &reflector, side lamp etc.

One set 6-core standard Cable

Tool box

1 Standard

Traction pin

50#or 90#, removeable

Landing Gear

Standard28Ton,external

Container Twist Locker

12 Screw type

Spare Wheel Bracket

2 pieces

painting

Optional(yellow,red,white,blue etc.)

Packing

Polish with wax before shipping
