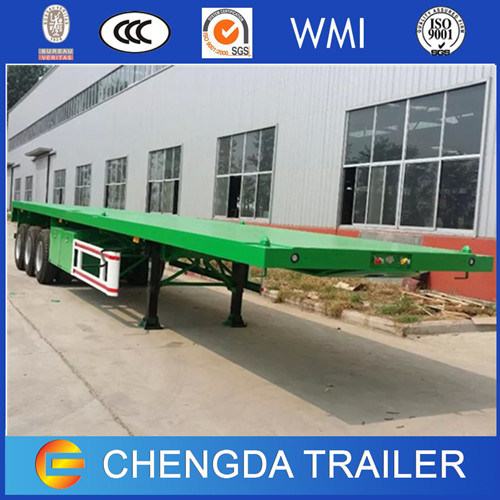

3 Axles 40FT and 20feet Container Flatbed Semi Trailer with Container Lock

Product Specifications forflatbed semi trailer

Model Number

SCD9400TJZ for 2 units 20ft container or 1unit 40ft container.

Outside Dimensions (LxWxH)

12500x2480X1650 (mm)

Rated Load

40000 kg

Tare Weight

6650 kg

Wheel base

8390+1310+1310 (mm)

TyreSpecifications

1200R22.5 12units

No. Of the Tyres

12

Axle Brand

FUWA (BPW,York optional)

No. Of the Axles

3

Axle-load

24000 kg

Traction Pin

50#/90#

Landing Leg

28ton

Pieces of leaf-spring

10

Suspension

independent stamping steel rigid suspension (or air suspension)

Departure Angle

16

Front/Rear Overhang

1890 mm

Material of the Main Beam

Q345B manganese plates, automatic submerged arc welded

Brake System

Dual line braking system/ABS

Brake Air Chamber

Six double chamber

Electrical

24V 7 ways(7 wire harness)

Color

Any color will be available

Accessory

One tooling box with a set of standard trailer tool

Twistlock No

12pcs
