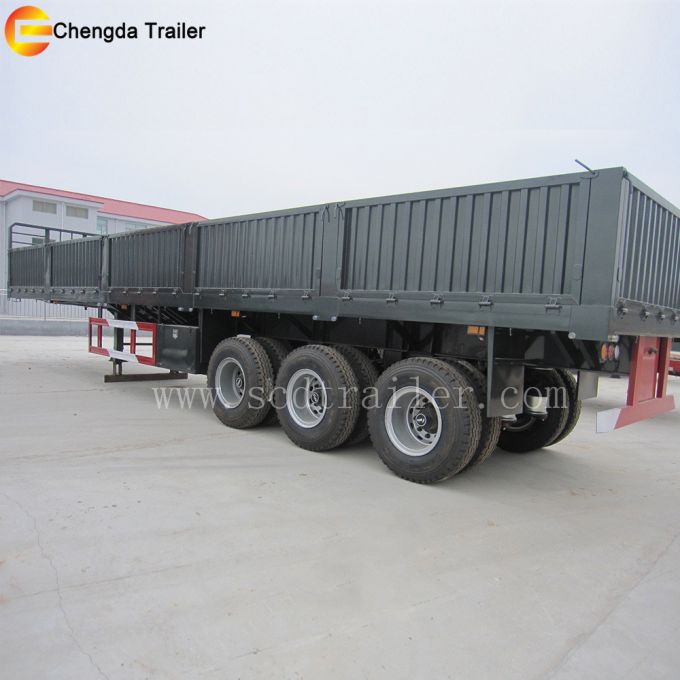

Chengda Trailer Manufacturing 3 Axles 40t 40ft Flatbed Semi Trailer

Trailer Model

3Axles 40ftcontainer semi trailer

Function

2x 20ft and 1x40ft container or other goods transportation

Tare Weight(KG)

6900

Loading Capacity(KG)

40000

Total Dimensions

(L*W*H) mm

13000*2500*1500

Main Beam

The height of the beam is 500 mm,the thickness of upper plate is16mm,down plate is 18mm,middle plate is 10mm

AxleNumber

3

AxleBrand

FUWA 13Ton Axle

Tire Type and Quantity

12.00R22.5 tubeless, 12

Suspension System

Standard Mechanical suspension

SteelSpring

10/10 leaf spring suspension

BrakingSystem

Dual Line braking system (none ABS)

Brake air chamber

Six big double air chamber

Electrical System

1.Voltage:24V

2.Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light &reflector, side lamp etc.

One set 6-core standard Cable

Tool box

1 Standard

Traction pin

50#or 90#, removeable

Landing Gear

Standard28Ton,external

Container Twist Locker

12 Screw type

Spare Wheel Bracket

2 pieces

painting

Optional(yellow,red,white,blue etc.)

Packing

Polish with wax before shipping
