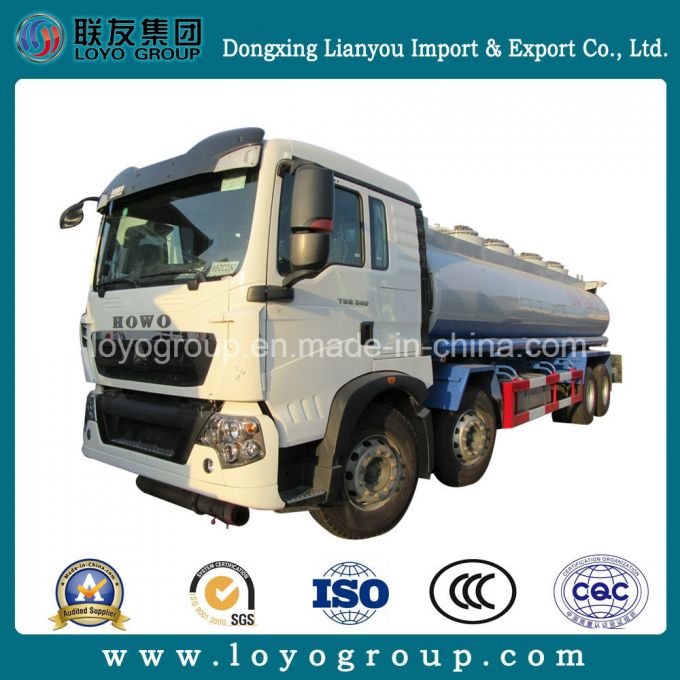

Sinotruk HOWO T5g 8X4 Fuel Truck 18000L Aluminium Oil Tank Truck

SINOTRUK T5G8x4 Fuel Truck with 18000L Aluminium Fuel Tanker

Driving Type				8x4
Model				ZZ1317N466GC1
Engine	Model			MC07.34-30
	Horsepower			340HP
	Maximum outputKw			248kw
	Maximum torque N.m			1250
	Type			BOSCH high pressure common rail engine ,4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging &intercooling
	Displacement			6.87L
	Manufacture: Make SINOTRUCK (CNHTC) &MAN GROUP ,Euro IIIemission standard
Cab	T5G-V,left hand driving ,with air conditioner ,double sleeper,hydraulically tiltable to the front,2-arm windscreen wiper system with 3speeds, laminate windscreen, with casted-in radio aerial, adjustable steering wheel, German VDO instruments, with stereo radio, MP5 player, air horn, electric rearview mirror, 4-point support fully floating suspension and shock absorber cab ,double-locking safety belt.
Clutch	Single- plate dry coil-spring clutch, diameter 430 mm, hydraulically operating with air assistance
Transmission	HW13710 transmission,10 speed forward and 2speed reverse
Front Axle	SINOTRUK VGD060QB new 7-ton front axles of equipped with drumbrake.
Steering	German D39 Steering Gear Box ,hydraulic steering with power assistance
Rear Axles	SINOTRUK 153drive alxle
Brake System	Service brake:dual circuit compressed air brake
	Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
	Auxiliary brake:engine exhaust valve brake
Tyres	Tyres:11.00R20radial tyre with 1spare tyre
Electrics	Operating voltage:24V,negative grounded
	Starter:24 V,7.5Kw
	Batteries:2x12 V,165Ah
	horn,headlamps,fog lights,brake lights,indicators and reverse light
Oil Tank	600L fuel tank
Dimensions	Overall length xwidth xheight12000x2496x3405mm
	Wheel base1800+5050+1350mm
Fuel Tank	Fuel Tank Volume (L):	18000L	tank material:	Aluminium	Tank internal structure	Fuel tank of18000L volume inside 5compartments Tanker(3000+4000+4000+4000+3000).
	Body of material thickness(mm):	5mm	Sealing cap material thickness(mm):	6mm
	Rear Ladder:	1 unit	Tools box:	1 unit	Tank Shape:	Oval
	With Pump ,with breathing valve,with bottom sea valve,with EURO standard Manhole,5pcs. with seal box With 2pumping hole, can pump in and pump out With operating platform on back
	Equip with 2units fire extinguisher ,with 2outlet pipe (length 6meter), with anti-crash rear bumper
Weight (kg)	Kerb weight12200kg
	Gross vehicle weight31000KG
Performance	Maximum drving speed (km/h)110
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer
	be suitable for long distance transportation of inland and ocean.

Companny Profile

Why choose SINOTRUK?

Engine

High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.

1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at awide range of sppds, Minimum specific oil consumption is 186/kwh.

2). Low nose: noise reaches the international level.

3). High-integration: volume of spare parts reduced 25% compared with the similar products in the world, highly reducing the failure points.

4). Long life of B10: reach the most advanced world level of heavy duty truck, 1.5 million km.

5). Long oil change interval: for Euro IV oil, the first oil change mileage( oil change interval) for the road vehicles since left factory shall be up to 100.000 km, for the oil selling bu Petrochina and Sinopec. it shall be up to 60.000 km, greatly reducing the cost.

Transmission

HW series heavy yupe transmission is anew generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.

Presently, this type of transmission is applied to be engine for the heavy duty truck which power range is 336--420 ps, it is the first choice for the domestic heavy duty truck.

Drive Axle

The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.

Cab

1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.

2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.

3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.

4) Each safety performance index completely meeting the latest legal requirements of China ,comprehensively enhancing the safety.

Aluminum alloy fuel tank

CNHTC owns several national patents for aluminum alloy fuel tanks and is the first manufacturer starting the mass production. The product quality is well guaranteed by the most advanced welding production line and full-process monitoring over the welding. Presently, the tank capacity includes 200L, 240L, 250L, 350L, and 400L and the round, D-shaped and square structure shapes can meet the different customers' demands. The aluminum alloy fuel tank is featured in light weight, high strength and excellent corrosion resistant performance to avoid the tank internal corrosion, enhance the fuel clearning degree and prolong the service life of engine.
