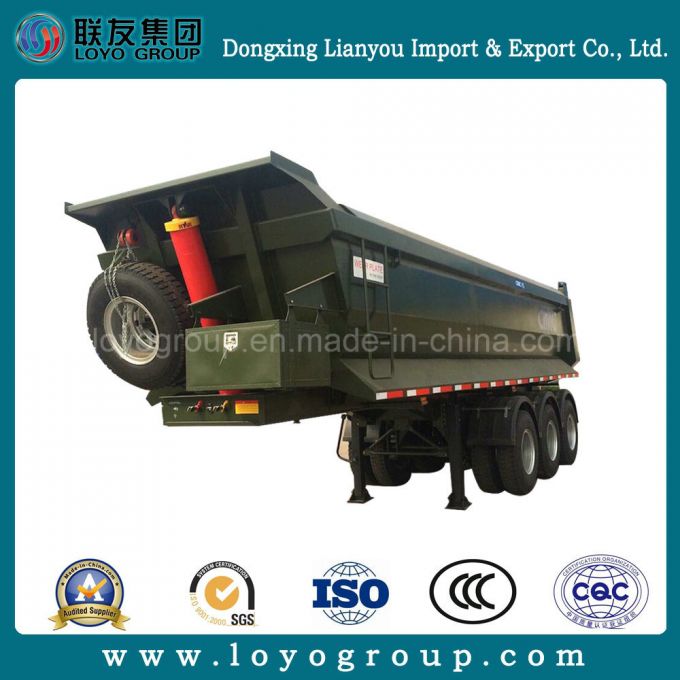

3 Axles 40t U Shape Dump Truck Semi Trailer

Heavy Duty U Shape 3 axle Dump Tipper Trailer Semi trailer

Chassis	High-strength steel Main beam high: 500mm,Welded by automatic submerged-Arc processes Top flange 14mm,Middle Flange 8mm,Bottom Flange 14mm
Axle	13T axle,brand:optional upon choice, totally 3 axles.
Suspension	Mechanical suspension
Tire	11.00R20 tires, brand:optional upon choice,quantity:13pcs
Wheel rim	8.5-20 steel wheel rim
Kingpin	2'/3.5' bolt-in king pin
Landing gear	2 speed. Manual operating, heavy duty landing gear
Lifting	HYVA 196 Lifting
Thickness	Floor: 8mm and side:6mm
Braking system	Dual line pneumatic brake system, ABS: optional upon choice
Tool box	1 standard tool box
Tare Weight:	8500KG
Overall Dimension (LxWxH)	8870*2500*3500mm

1. OUR ADVANTAGE:
(1)CompetitiveFactoryPriceandExcellentQuality
(2)Morethan10years'experienceasamanufacturer
(3)ProductsQualityCertificationSGSCCCISO
(4)Perfectafter-saleservice
(5)Customizedproductsavailablewithus
(6)Exporttomorethan50countriesandregions

2. AFTER SERVICE:LOYOGROUP PROMISE: We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.For Suspension, the guarantee period is 6month.For Kingpin, the guarantee period is one year.For landing gear, the guarantee period is one year.3. FAQ

Q1: I want the front two tires are bias tires and the rear 9 tires are radial tires, is it OK ?

A: We can make the tires as your requirement to suit your country's need.

Q2: What about your products quality ?

A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning!

Q3: Can i have samples of this type of flatbed semi trailer to test the quality ?

A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.

Q4: What others you can do ?

A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rationalpackingand shipping program,let shipment save money and security.

Q5: How to guarantee customers get the goods smoothly after they pay ?

A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in a while, and we will help you to book the latest ship.

Q6:What's the delivery time ?

A: The delivery time is within 15-30 working days after receiving your advance payment.

Q7:Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balancebeam andsemi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,brake pan, bearings etc.
