/Cargo Transport High Strength Steel Heavy Side Wall Semi Trailer
- USD 9500.11 /Unit
- 1 Unit
- 90 Unit
- 10 days
Product Description

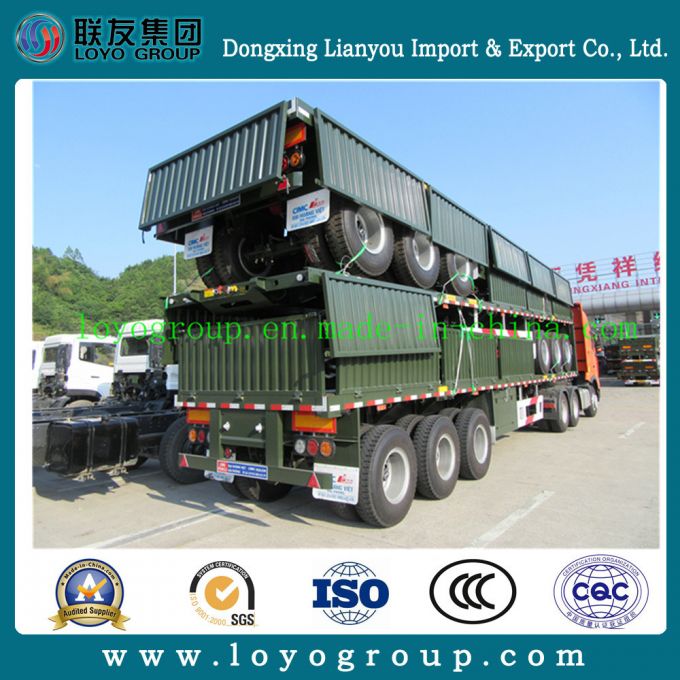

Cargo transport high strength steel heavy side wall semi trailer
Our Company
The LOYO Group originated from Dongxing Lianyou import & Export Co,.Ltd. which was founded in 2008. Its headquarter locates in Dongxing City ,Guangxi China, which is the leading-edge of China-ASEAN border and the only city connecting with ASEAN area both by land and water. Our company is an authorized dealer and exporter of China National Heavy Duty Truck Group Co., Ltd (SINOTRUK) , having the autonomy right of import and export businesses . Currently we have established an excellent and professional sales team and after-sales service team.
The LOYO Group's main business includes Dump Truck manufacturing & modification , sales and service of all series SINOTRUK(CNHTC) product including dump truck , off-road mining truck, tractor, Cargo truck, concrete mixer truck, water tanker ,oil tanker and other special truck and parts. Concerning the mechanical power aspect, we have covered horsepower level from 90Hp to 540Hp, which can meet customers' different needs. Our target is to become a world renowned supplier and providing customers with cleaner, more energy-saving, safe, more reliable and comforter transportation vehicles.
OUR ADVANTAGE:
(1)Competitive Factory Price and Excellent Quality
(2)More than10 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions
AFTER SERVICE:
LOYOGROUP PROMISE:We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.
(1)For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.
(2)For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.
(3)For Suspension, the guarantee period is 6month.
(4)For Kingpin, the guarantee period is one year.
(5)For landing gear, the guarantee period is one year.
ConTACT DETAIL:
Add:No.435 Beilun Avenue ,Dongxing City, Guangxi, China
Tel:+ 86 770 7655003Fax:+86 770 7690399
| eight: | ||
| Tare Weight | 5600kg--8500kg | |
| Loading Capacity | 30T--60T | |
| Axle Weight Load | 13T/16T | |
| Specification: | ||
| Axle number | Two or Three | |
| Axle specs. | FUWA or BPW Brand | |
| Suspension | Common mechanical Suspension | |
| Wheel | 11.00R22.5/12.00R22.5 Vacunnm tire /Triangle or Double Cone Brand | |
| King Pin | JOST 50# or 90# traction pin | |
| Dimensions (LxWxH) | 12450×2500×1490mm,13000*2490*1450/1575/2770mm | |
| Support legs | 28Tons (Tongyada Brand)/Jost D200T | |
| Rim | 8.25×22.5/9.00*22.5 Vacunnm tire Zhengxing Brand | |
| Wheelbase | 5980+1300/6680/6260+1310+1310mm, | |
| Steel Spring | 10/10/10 pieces per axles | |
| Twist Locks | 4 pieces | |
| Tire: | ||
| Number of Tire | can be choose freely | |
| Spare Tire Carriers | 2/4 pieces | |
| frame:(specs. and materials) | ||
| The material of Main beam | The height of the beam is450/500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm.If choose the SSAB high stress steel ,the uper and down plate is 8mm,middle plate is 5mm. | |
| Platform plate | 3mm Diamond Plate | |
| Brake: | ||
| Brake | Kemi Brand of China | |
| Brake Chamber | Four double and two single chamber( TKL brand ) | |
| ABS system | Can be choose freely | |
Our Company
The LOYO Group originated from Dongxing Lianyou import & Export Co,.Ltd. which was founded in 2008. Its headquarter locates in Dongxing City ,Guangxi China, which is the leading-edge of China-ASEAN border and the only city connecting with ASEAN area both by land and water. Our company is an authorized dealer and exporter of China National Heavy Duty Truck Group Co., Ltd (SINOTRUK) , having the autonomy right of import and export businesses . Currently we have established an excellent and professional sales team and after-sales service team.
The LOYO Group's main business includes Dump Truck manufacturing & modification , sales and service of all series SINOTRUK(CNHTC) product including dump truck , off-road mining truck, tractor, Cargo truck, concrete mixer truck, water tanker ,oil tanker and other special truck and parts. Concerning the mechanical power aspect, we have covered horsepower level from 90Hp to 540Hp, which can meet customers' different needs. Our target is to become a world renowned supplier and providing customers with cleaner, more energy-saving, safe, more reliable and comforter transportation vehicles.
OUR ADVANTAGE:
(1)Competitive Factory Price and Excellent Quality
(2)More than10 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions
AFTER SERVICE:
LOYOGROUP PROMISE:We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.
(1)For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.
(2)For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.
(3)For Suspension, the guarantee period is 6month.
(4)For Kingpin, the guarantee period is one year.
(5)For landing gear, the guarantee period is one year.
ConTACT DETAIL:
Add:No.435 Beilun Avenue ,Dongxing City, Guangxi, China
Tel:+ 86 770 7655003Fax:+86 770 7690399
