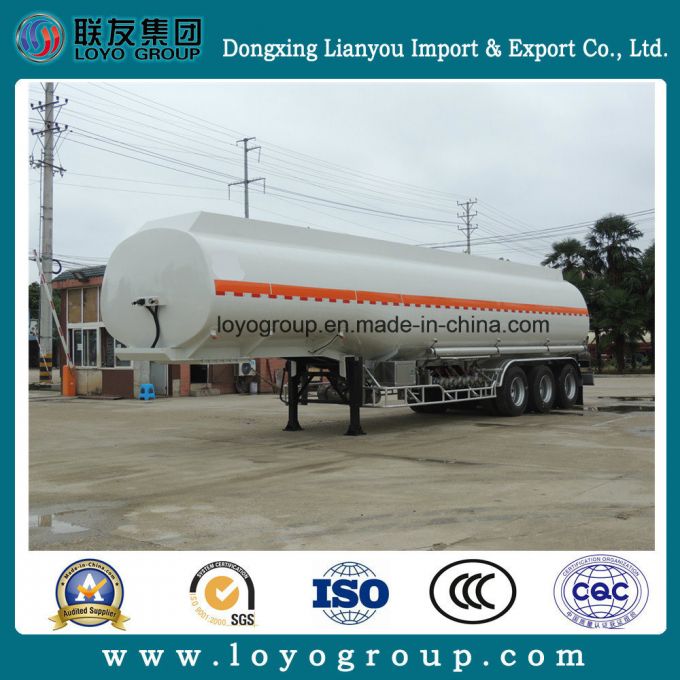

Fuel Tanker Semi Trailer with 3 Axle

fuel tanker semi trailer with 3axle

DIMENSIONS
Tare weight	13000kg
Size	14000mm*2500mm*4000mm
Volume	70m³
Tank body	Q235A/6mmsteel sheet
End plate	Q235A/6mm .ball shape
Outside sheet	no
Insulating material	no
Heating device	no
Axle	3axleFUWAbrand 16T
Suspension	Mechanical suspension American type local brand
Leaf spring	Leaf spring 10pcs*90*13mm
Manhole cover	500mmmanhole coverwith breath valve
Tire	12.00R20 double star brand 12pcs
Wheel rim	8.5-20 better brand 12pcs
Discharge valve	4"disc valve
Discharge pipe	4"seamless steel tube
Bottom valve	No
Kingpin	Chinabrand 3.5" bolt-in king pin
Landing gear	Chinabrand two-speed, manual operating , landing gear 28T
Compartment	Single
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	With
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,twospare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Date of delivery	20 workdays after we received 30% of contract value T/T down payment.

1.OUR ADVANTAGE:
(1)CompetitiveFactoryPriceandExcellentQuality
(2)Morethan10years'experienceasamanufacturer
(3)ProductsQualityCertificationSGSCCCISO
(4)Perfectafter-saleservice
(5)Customizedproductsavailablewithus
(6)Exporttomorethan50countriesandregions

2. AFTER SERVICE:LOYOGROUP PROMISE: We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.For Suspension, the guarantee period is 6month.For Kingpin, the guarantee period is one year.For landing gear, the guarantee period is one year.3.FAQ

Q1: I want the front two tires are bias tires and the rear 9 tires are radial tires, is it OK ?

A: We can make the tires as your requirement to suit your country's need.

Q2: What about your products quality ?

A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning!

Q3: Can i have samples of this type of flatbed semi trailer to test the quality ?

A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.

Q4: What others you can do ?

A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rationalpackingand shipping program,let shipment save money and security.

Q5: How to guarantee customers get the goods smoothly after they pay ?

A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in a while, and we will help you to book the latest ship.

Q6:What's the delivery time ?

A: The delivery time is within 15-30 working days after receiving your advance payment.

Q7:Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balancebeam andsemi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,brake pan, bearings etc.
