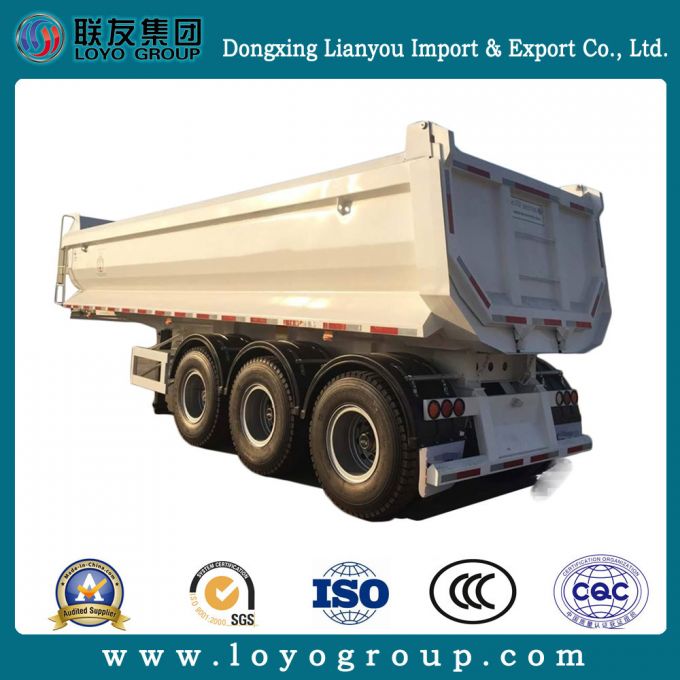

3 Axles Tipper Truck Trailer Hydraulic Dumper Semi Trailer for Sale

3 Axles Dump Truck Trailer for sale

Name	3 axles Dump Semi-trailer
Manufacturer	LOYO
Kerb weight (Kg):	9,000KG
Loading capacity:	50000-60000KG
Specification
Model:	CSQ9400ZZX				Color	Optional
Chassis	Heavy duty extra durability designed Ibeam,Welded by automatic submerged-Arc processes.
Axle	Number	3		FUWA brand		Capacity:	13T
Suspension	Mechanical Suspension
Leaf spring	Leaf spring
Floor	5mm plate				side wall 4mm
Tire	11.00R20 Radial tire,13pcs,Double Coins tyre
Kingpin	2'/3.5' bolt-in king pin
Landing gear	Jost brand two-speed,manual operating,heavy duty landing gear
Landing Legs	JOST 28T landing leg
Lift	HYVA 196 Lift
Internal Dimension (LxWxH)	7780x2300x1300 mm (The final size depends on the design drawings)
Brake	pneumatic brake system
ABS system	( option)
Painting	Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint.
Tools box	1 standard Toolbox
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer
	be suitable for long distance transportation of inlandand ocean.
