/Side Wall Semi Trailer to Loading Bluk Cargo
- USD 9500.12 /Unit
- 1 Unit
- 98 Unit
- 21 days
Product Description

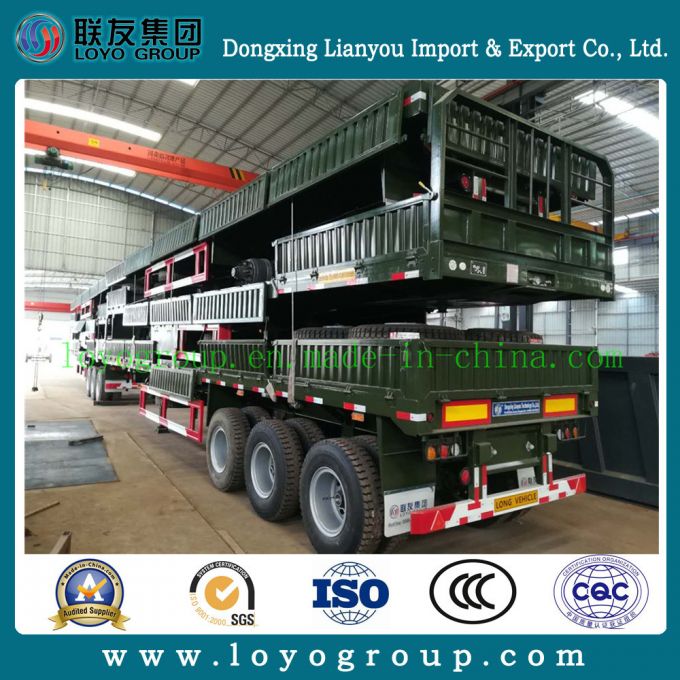

side wall semi trailer to loading bluk cargo
OUR ADVANTAGE:
(1)Competitive Factory Price and Excellent Quality
(2)More than10 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions
AFTER SERVICE:
LOYOGROUP PROMISE:We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.
(1)For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.
(2)For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.
(3)For Suspension, the guarantee period is 6month.
(4)For Kingpin, the guarantee period is one year.
(5)For landing gear, the guarantee period is one year.
ConTACT DETAIL:
Add:No.435 Beilun Avenue ,Dongxing City, Guangxi, China
Tel:+ 86 770 7655003Fax:+86 770 7690399
| eight: | ||
| Tare Weight | 5600kg--8500kg | |
| Loading Capacity | 30T--60T | |
| Axle Weight Load | 13T/16T | |
| Specification: | ||
| Axle number | Two or Three | |
| Axle specs. | FUWA or BPW Brand | |
| Suspension | Common mechanical Suspension | |
| Wheel | 11.00R22.5/12.00R22.5 Vacunnm tire /Triangle or Double Cone Brand | |
| King Pin | JOST 50# or 90# traction pin | |
| Dimensions (LxWxH) | 12450×2500×1490mm,13000*2490*1450/1575/2770mm | |
| Support legs | 28Tons (Tongyada Brand)/Jost D200T | |
| Rim | 8.25×22.5/9.00*22.5 Vacunnm tire Zhengxing Brand | |
| Wheelbase | 5980+1300/6680/6260+1310+1310mm, | |
| Steel Spring | 10/10/10 pieces per axles | |
| Twist Locks | 4 pieces | |
| Tire: | ||
| Number of Tire | can be choose freely | |
| Spare Tire Carriers | 2/4 pieces | |
| frame:(specs. and materials) | ||
| The material of Main beam | The height of the beam is450/500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm.If choose the SSAB high stress steel ,the uper and down plate is 8mm,middle plate is 5mm. | |
| Platform plate | 3mm Diamond Plate | |
| Brake: | ||
| Brake | Kemi Brand of China | |
| Brake Chamber | Four double and two single chamber( TKL brand ) | |
| ABS system | Can be choose freely | |
OUR ADVANTAGE:
(1)Competitive Factory Price and Excellent Quality
(2)More than10 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions
AFTER SERVICE:
LOYOGROUP PROMISE:We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.
(1)For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.
(2)For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.
(3)For Suspension, the guarantee period is 6month.
(4)For Kingpin, the guarantee period is one year.
(5)For landing gear, the guarantee period is one year.
ConTACT DETAIL:
Add:No.435 Beilun Avenue ,Dongxing City, Guangxi, China
Tel:+ 86 770 7655003Fax:+86 770 7690399
