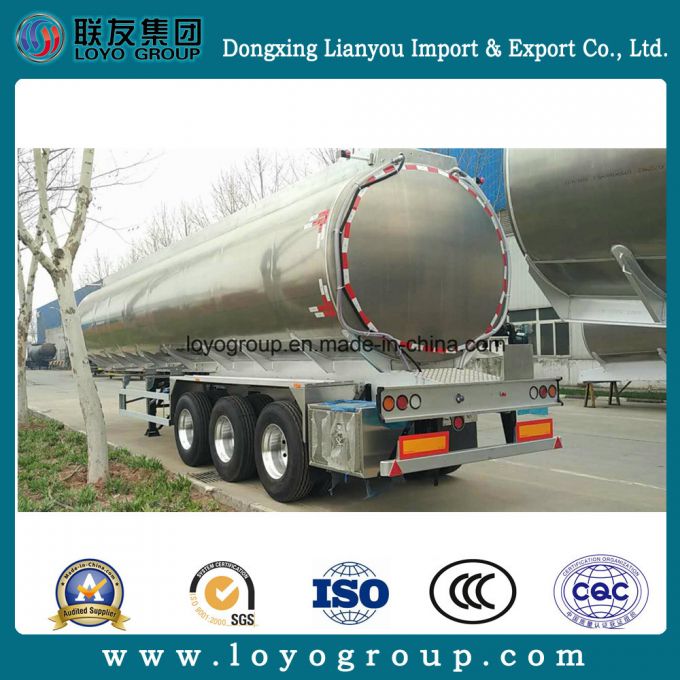

3 Axle Aluminum Alloy Fuel Tank Semi Trailer Oil Tank Semi Trailer

3 axle aluminum alloy fuel tank semi trailer oil tank semi trailer

DIMENSIONS
Tare weight	9000kg		Volume		45m3
Overall length	11500mm	Overall width		2500mm	Overall height	3800mm
SPECIFICATION
Tank body	5083/5mm steel
End plate	5083/6mm steel sheet
Axle	Number 3 Brand FUWA Capacity 13T
Suspension	Mechanical suspension
Leaf spring	Leaf spring 10pcs
Manhole cover	500mm manhole cover .2 sets with 2 breather valve.
Tire	12R22.5 11R22.5 12.00R20 11.00R20 825R20
Discharge pipe	4''seamless steel tube
Kingpin	2'' bolt-in king pin
Landing gear	two-speed, manual operating ,heavy duty landing gear 28t
Bottom valve	1 set of bottom valve
Thermal insulation layer	optional
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Painting	Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box
Main beams	Opting for high tensile steel Q345B welded by automatic submerged-arc processes

1. OUR ADVANTAGE:
(1)CompetitiveFactoryPriceandExcellentQuality
(2)Morethan10years'experienceasamanufacturer
(3)ProductsQualityCertificationSGSCCCISO
(4)Perfectafter-saleservice
(5)Customizedproductsavailablewithus
(6)Exporttomorethan50countriesandregions
2. AFTER SERVICE:LOYOGROUP PROMISE: We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.For Suspension, the guarantee period is 6month.For Kingpin, the guarantee period is one year.For landing gear, the guarantee period is one year.
3. FAQ

Q1: I want the front two tires are bias tires and the rear 9 tires are radial tires, is it OK ?

A: We can make the tires as your requirement to suit your country's need.

Q2: What about your products quality ?

A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning!

Q3: Can i have samples of this type of flatbed semi trailer to test the quality ?

A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.

Q4: What others you can do ?

A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rationalpackingand shipping program,let shipment save money and security.

Q5: How to guarantee customers get the goods smoothly after they pay ?

A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in a while, and we will help you to book the latest ship.

Q6:What's the delivery time ?

A: The delivery time is within 15-30 working days after receiving your advance payment.

Q7:Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balancebeam andsemi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,brake pan, bearings etc.
