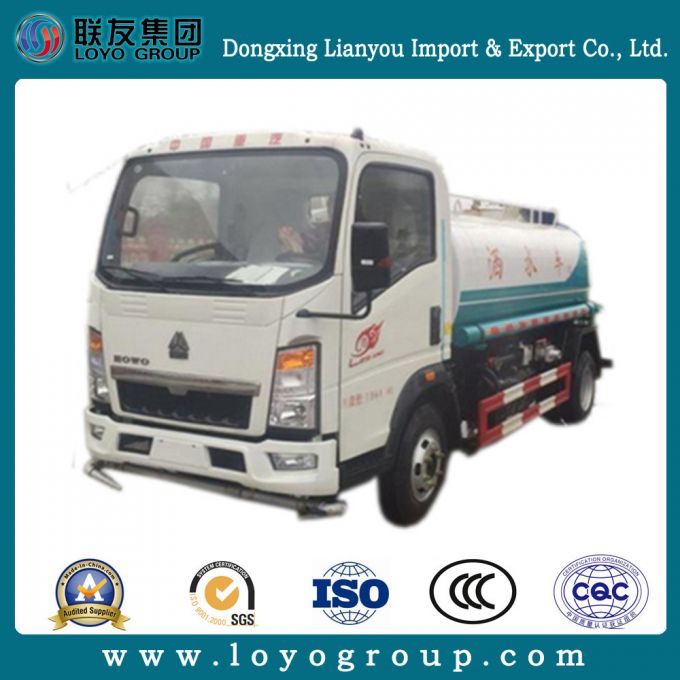

Best Quality Sinotruk HOWO 4X2 1000L Street Sprinkler Water Truck

Best Quality SINOTRUK HOWO 4X2 1000L Water Truck Hot Sale


Product Description

It is the special truck equipped with the water pump and nozzle, which forces the water under pressure to flow along the pipeline and spray into the road to remove the dust and cool down the road.

HOWO Water Tank Truck
				Driving Type 4x2
Chassis Model				ZZ1167G4715C1
Engine	Model			Yunnei
	Horsepower			110 HP
	Type			4-cylinder in-line with water cooling, turbo-charging and intercooling
	Euro III emission standard
Cab	1880 Cab, air conditioner, single bunk 45° hydraulically tiltable to the front,2-arm windscreen wiper system with three speeds, adjustable driver's seat, with heating and ventilating system, interior double sun visor, sunroof, radio and USB interface, safety belts, adjustable steering wheel, horn .
Clutch	Single-plate diaphragm spring clutch, diameter 300mm,hydraulically operating
Transmission	DC6J65TC
Front Axle	2.4
Steering	hydraulic steering with power assistance
Rear Axles	7.2,mature punching welding axle and pressed axle housing
Brake System	Service brake: dual circuit compressed air brake
	Parking brake (emergency brake):spring energy, compressed air operating on rear wheels (optional)
	Auxiliary brake: engine exhaust brake (optional)
Tyres	Tyres:7.00R20
Electrics	Operating voltage:24 V, negative grounded
	Starter:24 V,4.5Kw
	Batteries:24 V,80Ah
	Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light
Dimensions	Overall dimension(L xW xH mm)8445×2498×2650
	Wheel base4700
Water Tank	Tank Volume (m3):	10m3	Tank Shape:	Oval	Capacity (gallon)	3000
	Working type	Front jet, back spring, ice-resistant( extrude pressure advice), High compressed spray system cannon on the backgroup operation
Weight (kg)	Kerb weight5660
	Gross vehicle weight16000
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer
	be suitable for long distance transportation of inland and ocean.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Packaging &Shipping

1. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer
2. Shippment by sea or others
3. Delivery time is about 25-35 days


Loyo Group is aauthorized dealer and exporter of China National Heavy Duty Truck Group Co., Ltd (SINOTRUK)


Why choose SINOTRUK?

Engine

High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.

1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at awide range of sppds, Minimum specific oil consumption is 186/kwh.

2). Low nose: noise reaches the international level.

3). High-integration: volume of spare parts reduced 25% compared with the similar products in the world, highly reducing the failure points.

4). Long life of B10: reach the most advanced world level of heavy duty truck, 1.5 million km.

5). Long oil change interval: for Euro IV oil, the first oil change mileage( oil change interval) for the road vehicles since left factory shall be up to 100.000 km, for the oil selling bu Petrochina and Sinopec. it shall be up to 60.000 km, greatly reducing the cost.


Transmission

HW series heavy yupe transmission is anew generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.

Presently, this type of transmission is applied to be engine for the heavy duty truck which power range is 336--420 ps, it is the first choice for the domestic heavy duty truck.


Drive Axle

The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.


Cab

1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.

2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.

3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.

4) Each safety performance index completely meeting the latest legal requirements of China ,comprehensively enhancing the safety.


Aluminum alloy fuel tank

CNHTC owns several national patents for aluminum alloy fuel tanks and is the first manufacturer starting the mass production. The product quality is well guaranteed by the most advanced welding production line and full-process monitoring over the welding. Presently, the tank capacity includes 200L, 240L, 250L, 350L, and 400L and the round, D-shaped and square structure shapes can meet the different customers' demands. The aluminum alloy fuel tank is featured in light weight, high strength and excellent corrosion resistant performance to avoid the tank internal corrosion, enhance the fuel clearning degree and prolong the service life of engine.
