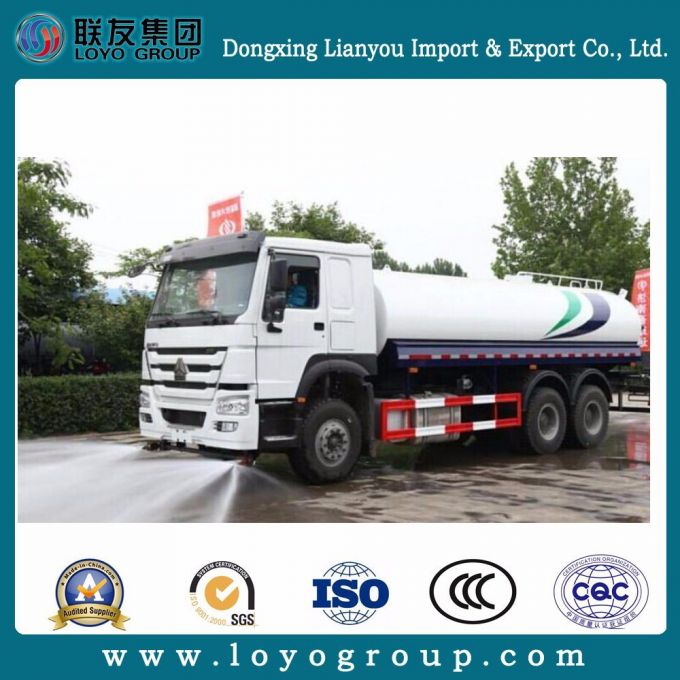

Sinotruk HOWO 6X4 336HP 20000L Water Sprinkler Truck Hot Sale

HOWO 6x4336hp20000L Water Truck with sprinklers

Product Description
HOWOWater Truck with sprinklers Specs.

SINOTRUK HOWO 6X4336HP 20000L Water Truck with sprinklers
Driving type				6x4
Chassis Model				ZZ1257N4641W
Engine	Model			WD615.69
	Horsepower			336HP
	Type			6-cylinder in line, 4-stroke, water-cooled, turbo-charged inter-cooled, direct injection
	Displacement			9.726L
	Make SINOTRUCK (CNHTC), Euro II emission standard,Rigid fan
Cab	HW-76 cab, left hand driving ,with air conditioner, One bed
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUKHW19710transmission ,10 forward and 2reverse
Front Axle	SINOTRUK HF9 Front Axle
Steering	German ZF8118 Steering Gear Box ,hydraulic steering with power assistance
Rear Axles	SINOTRUK HC16
Brake System	Service brake:dual circuit compressed air brake ,
	Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
	Auxiliary brake:engine exhaust valve brake
Tyres	Tyres: 12.00R20 Radial tyre with 1Spare tire
Electrics	Operating voltage:24V, negative grounded
	Starter:24V,7.5 Kw
	Alternator:3-phase,28V,1500 W
	Batteries:2x12 V,165 Ah
	horn,headlamps,fog lights,brake lights,indicators and reverse light
Water Tank with sprinklers	Tank Volume (L):	20000L	Tank Shape:	Elliptical	Tank internal structure	Water tank of20000L volumeinside individual 2compartments Tanker
	Body of material thickness(mm):	4mm	Sealing cap thickness(mm):	5mm	Manholes	2 Manholes
			Tool box	1 unit	The water tank material:	Carbon steel
	With Pump,with Duck-billed sprinkler,cylindrical sprinklers,spray rod,6meters rubber hosepipe
	Working type	1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3)Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites.
Dimensions	Wheel base4625+1350mm
	Overall length xwidth xheight10350×2496×3048(mm)

Loyo Group is aauthorized dealer and exporter of China National Heavy Duty Truck Group Co., Ltd (SINOTRUK)


Why choose SINOTRUK?

Engine

High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.

1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at awide range of sppds, Minimum specific oil consumption is 186/kwh.

2). Low nose: noise reaches the international level.

3). High-integration: volume of spare parts reduced 25% compared with the similar products in the world, highly reducing the failure points.

4). Long life of B10: reach the most advanced world level of heavy duty truck, 1.5 million km.

Transmission

HW series heavy yupe transmission is anew generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.

Drive Axle

The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.


Cab

1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.

2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.

3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.

4) Each safety performance index completely meeting the latest legal requirements of China ,comprehensively enhancing the safety.


Aluminum alloy fuel tank

CNHTC owns several national patents for aluminum alloy fuel tanks and is the first manufacturer starting the mass production. The product quality is well guaranteed by the most advanced welding production line and full-process monitoring over the welding. Presently, the tank capacity includes 200L, 240L, 250L, 350L, and 400L and the round, D-shaped and square structure shapes can meet the different customers' demands. The aluminum alloy fuel tank is featured in light weight, high strength and excellent corrosion resistant performance to avoid the tank internal corrosion, enhance the fuel clearning degree and prolong the service life of engine.



FAQ

Q:How about the delivery time?
A: Most of our trucks have stock ,we can deliver to you within 7days, if specially ordered ,normally we need around 30 days for production.

Q: How many units of truck does your factory produce per year?
A:Almost 4000 units.Nearly 400units per month.

Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales
service,some countries use the third party service.
