Sinotruk Huawin 4 Axle Low Flatbed Semi Trailer

Sinotruk Huawin 4 Axle Low Flatbed Semi Trailer

Specifications
(1) Low flatbed semi trailer
(2)4Axle
(3)BPW/FUWA/HJ Brand Axle
(4) Loading Capacity 30 ton
(5) Sring Ladder, hydraulic ladder as option
(6)Certification:ISO9001CCC,SGS

TechnicalParameters

DIMENSIONS
Tare Weight	10500kg
Overall Length	13000mm
Deck Length	8500mm
Deck Height	1150mm
Overall Width	3000mm
Payload	45000kg

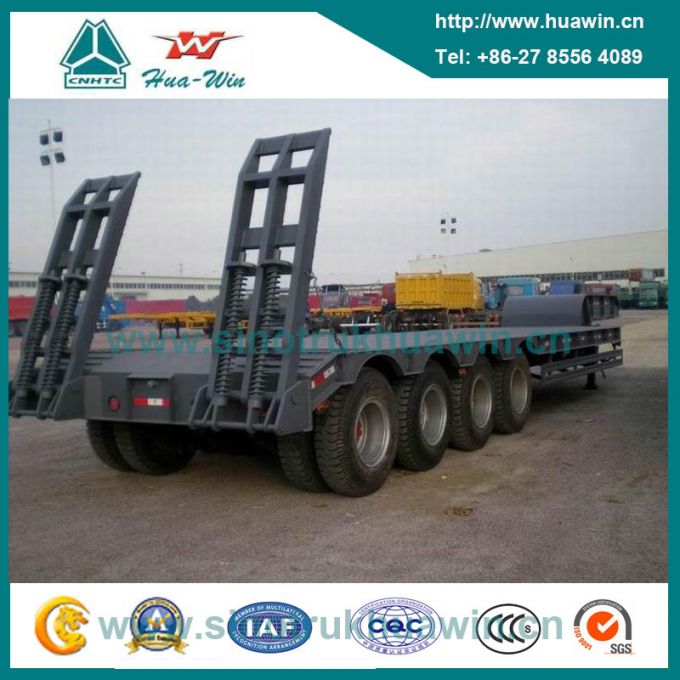

Photo for reference.

SPECIFICATION
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm; Bottom Flange 16mm,width 140mm.
Axle	4 axles. 12Ton, 13Ton, 14Ton optional upon choice Brand Name: BPW, L1 or FUWA-Optional upon requirement
Suspension	Mechanical suspension or air suspension optional upon choice
Floor	3mm checker plate
Leaf Spring	8-piece leaf spring
King Pin	JOST brand 3.5" Bolt-in King Pin
Ramp	Mechanical spring ramp or hydraulic lifting ramp-Optional upon requirement
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	8.5-20, 8.25-22.5, 9.0-22.5-Optional upon tire requirement
Tyre	11.00-20, 12.00-20, 11.00R20, 12.00R20, 11R22.5, 12R22.5-Optional
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box

OurAdvantage
1.CompetitiveFactoryPriceandExcellentQuality
2.Morethan20years'experienceasamanufacturer
3.ProductsQualityCertificationSGSCCCISO
4.Perfectafter-saleservice
5.Customizedproductsavailablewithus
6.Exporttomorethan50countriesandregions
7.Overseawareshousewithmorethan100000USdollorssparepartsinstock
8.Overseaofficewithmorethan15professionalengineerstohelplocalcustomers

Mainproducts
1.DumpTruck/TipperTruck
2.FireFightingTruck/FireTruck/FireVehicle/FireEngine
3.Truckwithcrane/Truckmountedcrane
4.OilTankTruck/FuelTankerTruck
5.Watertruck/WaterTankTruck/WaterSprinklerTruck
6.ConcreteMixerTruck
7.Vantruck/Insulatedtruck/Refrigerationtruck
8.Fecalsuctiontruck/Sewagesuctiontruck
9.CementPowderTanktruck/Bulkcementtruck
10.High-altitudeoperationtruck
11.Self-loadinggarbagetruck,garbagecompactortruck,sealedgarbagetruck,
12.SemiTrailer(flatbedtrailer/skeletontrailer/dumpsemitrailer/sidewalltrailer/lowbedtrailer/vancontainertrailer/warehousetrailer,etc.)

FAQ
1.MOQ:1unit
2.Optionalpaymentterms:T/TorL/C
T/T:30%depositbyT/T,70%balanceshouldbepaidbeforeshippment.
L/C:30%paymentadvance,70%L/Catsight.
3.Partsoffamousbrandcanbeadoptedbyyourrequirement,suchasWABCO,JOST,BPW,FUWA.
4.Deliverytime:Within15workdaysafterreceiving30%depositofT/T

Warranty
1.Oneyearqualityguaranteeforthreekeypartsaxles,engine,transmissionorwithin100000km,whichcomesthefirst.
2.OthersparepartcouldbesuppliedbyOEMatcostprices.
3.Regularlycallbacktoknowthevehicle'sworkingstatus.
4.Theoverseasengineersarealwaysreadytodealwithunexpectedneeds.

Yourarealwayswelcometovisitourfactoryatanytime.
