Isuzu Truck with Crane

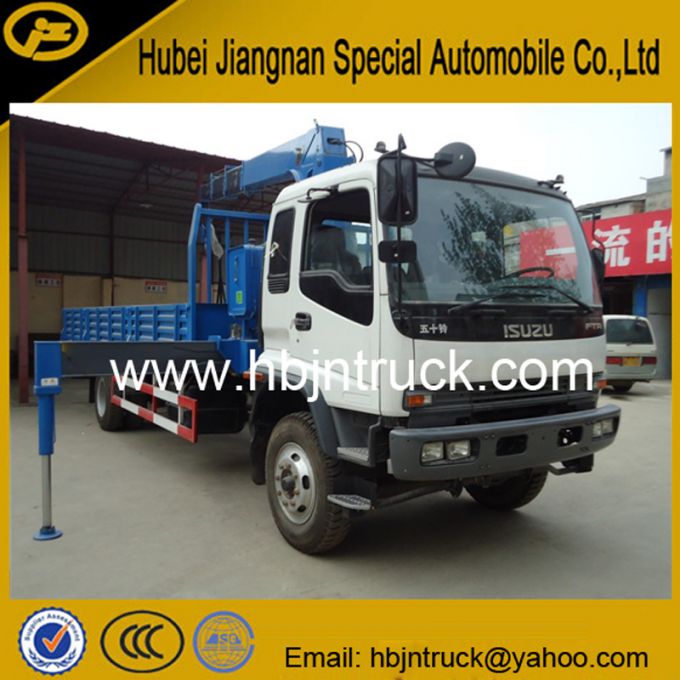

Isuzu truck with crane, the crane is telescopic boom type, 3 section of boom, max lifting capacity 5 ton at 2.5 meters.

5 Ton telescopic boom crane specification:

Crane model	SQ5SK2Q
Crane make	XCMG
Max lifting capacity	5000kg
Max lifting moment	12.5T.m
Recommend power	18kw
Max oil flow of hydraulic system	32L/min
Max pressure of hydraulic system	18MPa
Oil tank capacity	90L
Rotation angle	All rotation
Crane self weight	2074kg
Installation space	900mm
Outriggers	2pcs
operation	Manual, right side or left side have operation level

5ton telescopic boom Lifting capability diagram

Working radius(m)	2.5	3.62	6.05	8.5
Lifting capacity(kg)	5000	2800	1500	1100
