Isuzu Small Reefer Truck

Product Description

Isuzu ELF chassis model
Isuzu 4HK1-TCG40 engine (120hp), euro 4 emission.
Isuzu MSB transmission, manual
USA Carrier refrigerated unit.

Vehicle name				Isuzu Refrigerated Truck
Manufacturer				Hubei Jiangnan Special Automobile Co., Ltd
Chassis model				QL10703
Chassis brand				Isuzu elf series
Cabin				Single row, 2 seats, air conditioner, radio
Overall dimension (LWH)(mm)				5995x1930x2815
Wheel base				3360 mm
Drive type				4x2, left hand drive
GVW				7300 kg
Curb weight				3210 kg
Rated payload weight				3960 kg
Engine	Engine model			4KH1-TCG40
	Engine make			Isuzu
	Rated power			88kw / 120 hp
	Max torque			280N.m
	Displacement			2999ml
	Emission standard			Euro 4, high pressure common rail
	Type			Diesel engine, 4-cylinders in line, supercharged cooling
Brake				Oil brake
Gear box			Model	Isuzu brand, MSB
			type	Manual, 5 speed forward, 1 speed reverse
Tire type				7.00-15, 6 pcs
Axle load		Front axle		2-2.2 ton
		Rear axle		3-4.8ton
Wheel track (F/R)				1015/1525
Leaf spring number				8/6+5
Suspension (F/R)				1015/1620
Freezer box inner dimension (LWH)				3800x1700X1600 mm
Cooler unit				USA Carrier
Temperature				-18°~0°
Door				rear back
Freezer box materials				The refrigerated truck bodies is made of GRP & PU foam with full closed structure that the GRP (Glass reinforced plastic fiber ) outside, and the PU foam in side the core, thickness 10mm

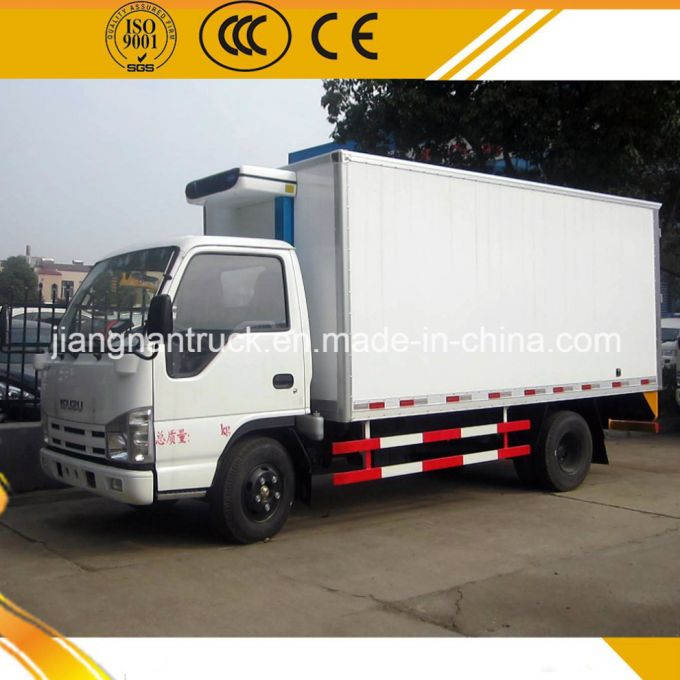

Product Images
