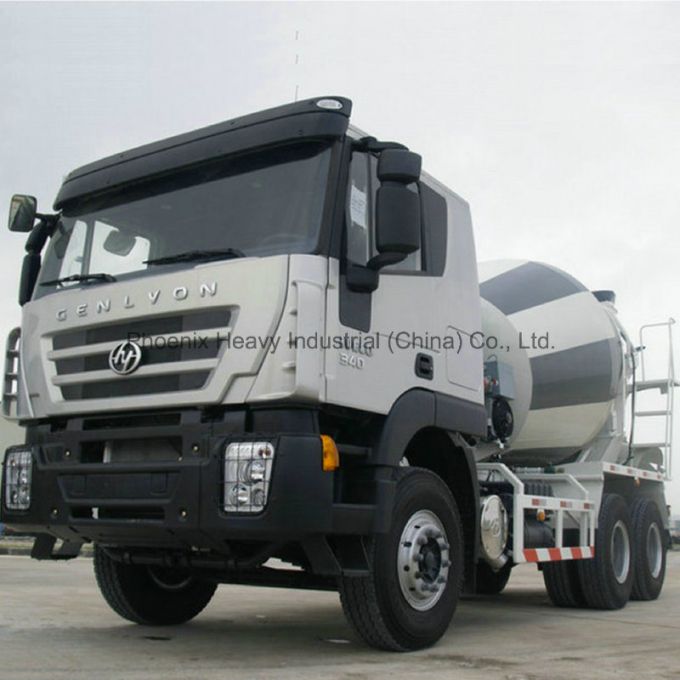

340HP Hongyan Iveco 6X4 Mixer Truck with One Sleeper

6x4 340HP Hongyan Genlyon special truck - Concrete Mixer Truck

1. The advanced IVECO technology and HonGYAN vast manufacturing experience

2. Engine is cursor (WEICHAI Engine is optional. )

3. Over 40 years manufacturing experience

4.12 Months warranty time and best sales service.

Products descriptions:

With the rapid development of the world economy, common transport vehicles fail to satisfy customers' special needs. In this case, more specially built or modified vehicles are used for customers' special applications. These special trucks can be used to transport materials with different properties and in different states, e. G.: Liquid, gaseous and bulk materials, granules; Livestock, poultry, fish and other animals; Toxic, inflammable and explosive goods. Tanker trucks, fire trucks, aircraft tractors, charging cars, and compressed air cars are some of common special trucks.

As a special truck manufacturer in China with decades of experience, SAIC-IVECO HonGYAN Commercial Vehicle Company is able to produce various kinds of special heavy duty trucks to suit customers' specific needs. Our typical products include concrete mixer trucks, bulk concrete trucks and tanker trucks. These products are widely used in the construction, chemical, transportation, energy, and other industries.

Apart from special trucks, we also manufacture tractor unit, Dump Trucks and Cargo trucks. Known for their reliable performance, low fuel consumption and high durability, our products are sought after by customers in Africa, Southeast Asia, Central Asia, the Middle East, and South America.

No matter what kind of heavy duty vehicles you need, we will do our best to provide you the exact products you need, with considerate service.

IVECO GENLYON 6X4 ConCRETE MIXER TRUCK,8000L
	MODEL	IVECO GENLYON 8M3 ConCRETE MIXER TRUCK,EUROIII
Cab	Driving type	Left Hand Drive
	Cab type	Genlyon C100 short flat roof cab with one sleeper bed, with A/C
Engine	Engine Model	C9 340, EUROIII, 340hp
	Type	High pressure common rail electronic control system,turbocharging and intercooling
	Displacement	8.7L
	Engine output	340hp/2100 rpm
	Max. torque	1400NM /1000-1800rpm
Equipments	Transmission (gear box)	FAST RT-11509C,9 speed transmission
	Clutch	D430 Diaphragm type
	Steering	ZF technology
	Driving axles	16T Double reduction axles Ratio=5.73
	Fuel tank	400L
	Tires	295/80R22.5, 10+1spare
Weights	Kerb. mass	11890kg
	Total mass	25000kg
	Rated payload	12980kg
Performance	Max. speed (km/h)	80
	Wheel base (mm)	3800+1400
	Front/rear overhang (mm)	1435/2265
	Front/rear wheel track(mm)	2006/1850
	Overall dimension(mm)	9125×2500×3950
Mixer Drum Body	Tank body size(mm)	8 M3
	Rotating speed	0-14 r/min
	Discharged remain ratio	< 1%
	Water Tank	400L
	Hydraulic pump and motor	ARK (Italy)
	Decelerator	TOPUNIOn (Italy)
