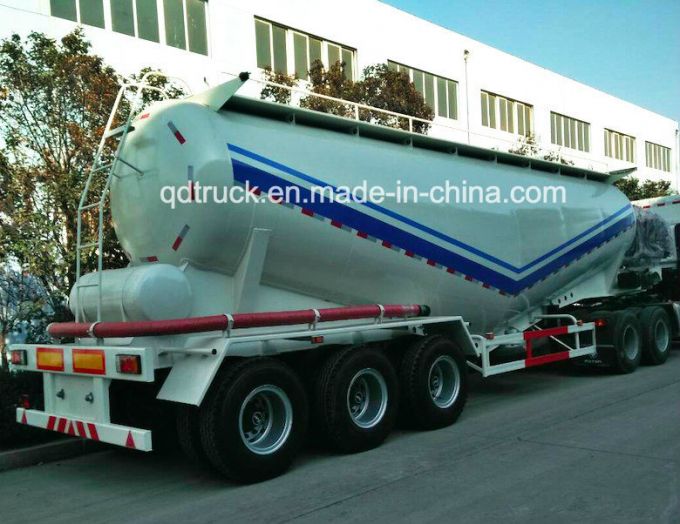

Brand New Bulk Cement Trailer, Chinese Cement Trailer

Brand New Bulk Cement Trailer, Chinese Cement Trailer

Bulk cement tanker trailer, is specially designed for bulk powder cargo transportation, like cement, corn, wheet, and other grains. Round cylinder design is good for fast-speed discharging(3-4 discharging outlets) and container transportation ( tanker body and chassis can be seperately loaded into contaier and conncetec by bolts and nuts).
Capacity: 52CBM
Manhole Cover: Alluminum manhole cover
Air compressor: 9.5CBM air compressor
Engine: Disel engine or electrical motor-optional.





Chassis: Special designed chassis for heavy duty and extra durability
Axle: German style(BPW, L1, etc) or American type.
Suspension: Mechanical suspension or air suspension-upon requirement
Landing Gear: 28T, two speeds.
King Pin: 2"or 3.5" bolt-in King pin.

cement tank Model	HTC9370GSN
dimension: (mm)	11950mmx2500mmx3900mm
Tare weight	137000kg
tank volume	40cbm
wheelbase	6900+1305+1305
tank thickness	tank body 6mm
Max Payload	50Tons
overall weight	50T
Unloading rate(KGS/MIN)	above 1200KGS
frame and running constructon
Axle	FUWA /3 (13T type)
tyre	customized
rim	8.0-20/12
leaf-spring	80width*10pieces*13mm/6 sets
side beam	customized
Kingpin	JOST ,two speed
Electrical and braking system
Electrical system	24 volt electrical system.7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear light, rear front and side reflectors
Paint (shot blasting )	Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns dft),third and forth layers international alkyd finish top coat.total 100 microns. Seawater proofed,waxed,
power system(engine and air-compressor)
engine	Diesel engine,Weifang 4102 type
Air-compressor	10/2 doule cylinder
