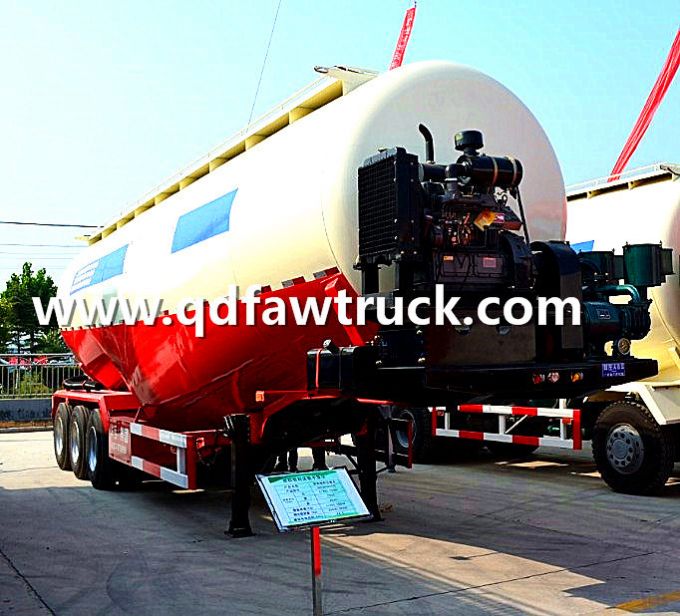

Hot Sale! 50m3 Bulk Cement Trailer

Hot sale! 50m3 Bulk Cement Trailer

Cement Trailer, trailer, Cement Tank Trailer, Bulk Cement Tanker Trailer, China cement Tank Trailer, China cement trailer, semi trailer, heavy truck, tank trailer, tanker trailer, cement tanker trailer, cement tank semi trailer, cement tanker semi trailer, powder tank trailer, powder tanker trailer, powder trailer, powder tank semi trailer, powder tanker semi trailer, cement trailer supplier

1. Dimension: 11880x2495X3700mm
2. Load capacity: 50 tons
3. Type: 12.00R20
4. Diesel Engine: WEICHAIType: 10m3
5. Size of Cement Tank Semi Trailer(mm)
Length: 11880
Width: 2495
Height: 3700
6. Curb Weight (kg): 8100
7. Type of Tire: 12.00R20
8. Number of Tire(piece): 8
9. Type of Wheel: 8.5-20
10. Number of Rim(piece): 8
11. Axle: FUWA 13T
12. Number of Axle(Piece): 2
13. Number of Spring(Piece): 7 Leaf Spring
14. Model of Chamber: 4S/2M ABS
15. Model of Leg: TSU
16. Kingpin(Inch): 50'' Bolted Type
17. Spare Tire Carrier: 2
18. Actual Cubage of Cement Tank(m3): 50 m3
19. Working Pressure(MPa): 0.2
20. Diesel Engine: WEICHAI 4100 24V
21. Compressor: WB-7/2.

cement tank Model	HTC9370GSN
dimension: (mm)	11950mmx2500mmx3900mm
Tare weight	137000kg
tank volume	40cbm
wheelbase	6900+1305+1305
tank thickness	tank body 6mm
Max Payload	50Tons
overall weight	50T
Unloading rate(KGS/MIN)	above 1200KGS
frame and running constructon
Axle	FUWA /3 (13T type)
tyre	customized
rim	8.0-20/12
leaf-spring	80width*10pieces*13mm/6 sets
side beam	customized
Kingpin	JOST ,two speed
Electrical and braking system
Electrical system	24 volt electrical system.7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear light, rear front and side reflectors
Paint (shot blasting )	Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns dft),third and forth layers international alkyd finish top coat.total 100 microns. Seawater proofed,waxed,
power system(engine and air-compressor)
engine	Diesel engine,Weifang 4102 type
Air-compressor	10/2 doule cylinder
