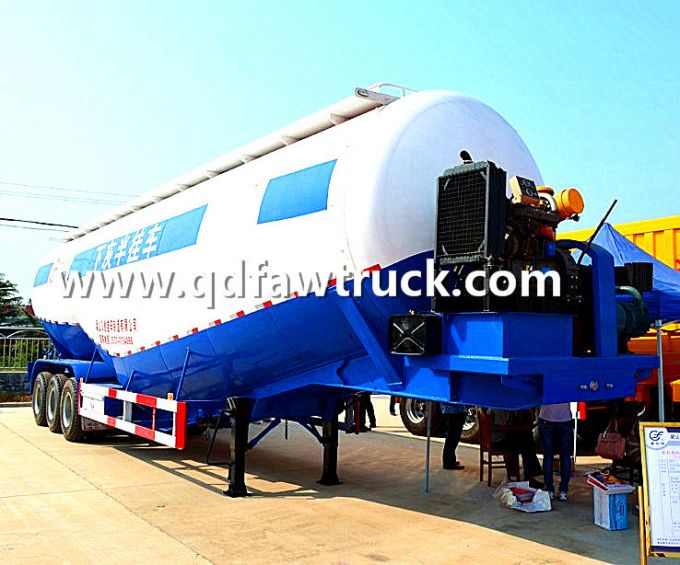

40 Cbm Bulk Cement Tank Trailer

40 Cbm Bulk Cement Tank Trailer
Type: 3 Axles 40m3 Cement Tank Trailer, Bulk Cement Tank Semi Trailer (40cbm), powder tank trailer

Size of Cement Tank Semi Trailer(mm)
Length: 11880
Width: 2495
Height: 3700

Curb Weight (kg): 11100
Type of Tire: 12.00R20
Number of Tire(piece): 8
Type of Wheel: 8.5-20
Number of Rim(piece): 8

Axle: FUWA 13T
Number of Axle(Piece): 3
Number of Spring(Piece): 7 Leaf Spring
Model of Chamber: 4S/2M ABS
Model of Leg: TSU

Kingpin(Inch): 90'' Bolted Type
Spare Tire Carrier: 2
Actual Cubage of Cement Tank(m3): 40 m3
Working Pressure(MPa): 0.2
Diesel Engine: WEICHAI 4100 24V
Compressor: WB-7/2.

Q:How can we trust your company?

A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.

Q: Can u provide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.



Q: How about warranty item?

A: We could support you original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

We can supply various Tractor Head, 420HP Tractor Head, Tractor Head Truck, 80 Tons Trailer Truck, Heavy Tractor Head, Tractor Trucks Tractor Head, Special Tractor Head, trailer truck, heavy truck, tractor, tractor trailer, truck, heavy vehicles, tow truck, container truck, Tractor truck 420HP, tractor truck 6X4, 6X4 tractor truck, tractor truck 380HP, 380HP tractor truck.

cement tank Model	HTC9370GSN
dimension: (mm)	11950mmx2500mmx3900mm
Tare weight	137000kg
tank volume	40cbm
wheelbase	6900+1305+1305
tank thickness	tank body 6mm
Max Payload	50Tons
overall weight	50T
Unloading rate(KGS/MIN)	above 1200KGS
frame and running constructon
Axle	FUWA /3 (13T type)
tyre	customized
rim	8.0-20/12
leaf-spring	80width*10pieces*13mm/6 sets
side beam	customized
Kingpin	JOST ,two speed
Electrical and braking system
Electrical system	24 volt electrical system.7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear light, rear front and side reflectors
Paint (shot blasting )	Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns dft),third and forth layers international alkyd finish top coat.total 100 microns. Seawater proofed,waxed,
power system(engine and air-compressor)
engine	Diesel engine,Weifang 4102 type
Air-compressor	10/2 doule cylinder
