CIMC For Vietnam Heavy Truck 25cbm Tri-Axle Tipping Trailer Dumper

CIMC For Vietnam Heavy Truck 25cbm Tri-Axle Tipping Trailer Dumper

Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as Dump Truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.


We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.




Self-Dump tipping semi trailer, 2-3 axles, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T in long distance delivery, rough road situation.
Tare Weight: 8500-115000 Kg
Dimension (Lx W X H): 10.5X2.5X2.8m
Capacity: 18, 24, 32, 45 CBM
Payload: 30-50T.

Side Wall: 6mm strengthened wall
Front Wall: 8mm strenthened
Floor: 8mm strenthened
Hydraulic HYVA hydraulic cylinder.

Chassis Heavy Duty I Beam Chassis
Axle BPW, FUWA, SAF-Optional
Suspension Mechanical, Air Bags-Optional
King Pin: 2", 3.5"
Tire: 11R22.5, 12R22.5. 315/80R22/5
Braking System WABCO Relay Valve
Accessories One standard tool box.

Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company and SINOTRUK. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us.We also have cooperated several times with the third party named TCI from UK. They can inspect the trucks and trailers producing and shipping after getting your authorization.

Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.



Product Description
Dump trailer, tipper trailer, Hauling trailer, 30-50 tons loading capacity

Packaging & Shipping
Nude packing

Our Services
Spare parts, Warranty

Company Information
FAW, The first Auto works in China, have the longest truck producing history and more than 56 years producing experience.







FAQ
T/T, L/C could be accept.

DIMENSIONS	8600*2500*3300MM
INNER DIMENSIONS	7690*2330*1420MM
TARE WEIGHT	within 8.3T
PAYLOAD	35-45T

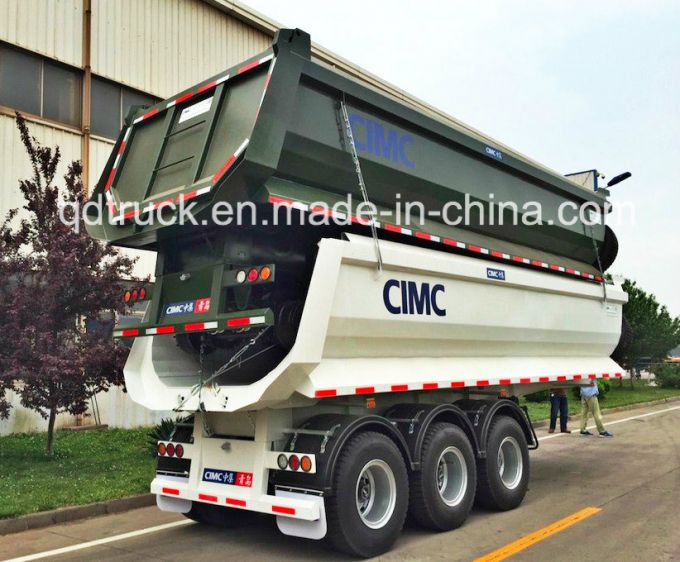

Photo for reference, final product can be manufactured according to exact requirements
DUMPER BODY
FLOOR	6MM
SIDE/FRONT/REAR PLATE	4MM (T750 high tensile)
VOLUMN	25CBM
SPECIFICATIONS
Chasis	Heavydutyandextradurabilitydesigned ;OptingforhightensilesteelT750L,weldedbyautomaticSubmerged-Arcprocesses.TopFlange14mm,width150mm;DoubleMiddleFlange6mmand8mm;BottomFlange14mm,width150mm.
Hydraulic System	One set of HYVA cylinderFE-191-5-06180
Axle	3 units ofL1 13T 10 holes
Tyre	13 units of DOUBLE COIN (brand) 12.00R20 (Including one spare tyre)
Wheel Rim	13 units of 8.5-20
King Pin	2'' bolted style
Landing Gear	FW 19'
Suspension	Americandesignmechanicalsuspension
Leaf Spring	6 sets of 7-pieces 90*16mm leaf spring
Braking System	2 of WABCORE-6 relayvalve; 6 of T30/30 Springbrakechamber;40Lairtanks
Electric	International standard 24v circuit 7-pin ISO socket(JAEGER POWAY) ; Tail lamp with LED lights.
Painting	CompleteChassissandblastingtocleanrust,1coatofanticorrosiveprime,2coatsoffinalpaint
Accessories	One standard tool box

alltypes trucks, semitrailers,lowbedsemitrailer,containertransportsemitrailer,sidewallsemitrailer,storehousebarseries,vanseries,carcarriersemitrailer,dumptrailer,tankertrailerseries,concretemixertruckseriesetc.Also,ourbusinesslinerangesfromtheresearch,development,anddesigntothemanufactureandsalesforotherautomobileaccessories,especiallyfortires.OurproductsaremainlyexportedtoPhilippine,Tunisia,Vietnam,Tanzania,Angola,Mongolia,Venezuela,UAE,Kenya,ect

1)Manufacturer,morethan14yrsprofessionalexperience.
2)CCC,SGSandISO9001certificate,one year guaranteetermprovided.
3)Smallordercanbeaccepted.
4)Anycolorandlogowillbeavailable.
5)Productscanbecustom-madeaccordingtoyourdesign,ordiversifiedneeds.
