35-50T self-dump truck semitrailer

35-50T self-Dump Truck semitrailer






35-50T Standard Dump/Tipper Trailer for sale

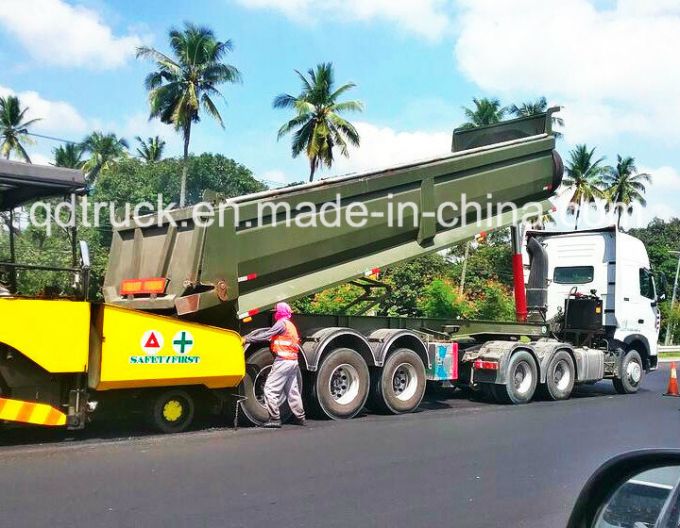

Self-Dump tipping semi trailer, 2-3 axles, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T in long distance delivery, rough road situation.
Tare Weight: 8500-115000 Kg
Dimension (Lx W X H): 10.5X2.5X2.8m
Capacity: 18, 24, 32, 45 CBM
Payload: 30-50T.

Side Wall: 6mm strengthened wall
Front Wall: 8mm strenthened
Floor: 8mm strenthened
Hydraulic HYVA hydraulic cylinder.

Chassis Heavy Duty I Beam Chassis
Axle BPW, FUWA, SAF-Optional
Suspension Mechanical, Air Bags-Optional
King Pin: 2", 3.5"
Tire: 11R22.5, 12R22.5. 315/80R22/5
Braking System WABCO Relay Valve
Accessories One standard tool box.




Q: How can we trust your company?
A: We are the official authority company by SINOTRUK, BEIBEN, SHACMAN, CIMC & FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us.

Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.


Product Description
Dump trailer, tipper trailer, Hauling trailer, 30-50 tons loading capacity

Packaging & Shipping
Nude packing

Our Services
Spare parts, Warranty

Company Information
FAW, The first Auto works in China, have the longest truck producing history and more than 56 years producing experience.

FAQ
T/T, L/C could be accept.

Product Specifications
Parameter
Outside Dimensions (L*W*H)	L:8000-12000W:2400-4000H:110-4000
Rated Load	30ton-50ton
Tare Weight	More than7000kgs
Wheelbase	8480+1310 (mm)
Hydraulic cylinder	HYVA
Running Gear
Tires	specification		12R22.5 ,11.00R20 or depends on customer
	No. of tires		8,12,16 or more than 20
	Brand		Double coin,Bridgestone,Tri-angle
	Spare tire carriers		2 or 1including ariser.
Axles	Brand :		FUWA (BPW German optional)
	No. of axles:		2,3 4or more than 5
	Axle-load		13000kgs
Wheel rim	8units of 7.50-20 rim or 8.00
Suspension	Rigid suspension and air suspension
Pieces of leaf-spring	10/10/10
Brakes	brand			TKL brand
	Brake chamber			4 double chamber
	System			Dual line braking system /ABS
Under frame
Departure Angle	14
Front/RearOverhang	1670mm
Main Beam	material	I beam ,Q345B ,automatic submerged arc welded
	specification	Height is 500mm,upper plate is14mm,lower plate is 16mm,middle is 10mm
Cross Beam material	Q235B
Side beam	16# channel steel
Plate form	Steel Sheet 5mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.5mm,3mm,4mm,5mm,6mm)
King Pin	50# or 90#
Landing gear	Single side operation or double side operation, Static capacity 28Ton
Accessory	One tooling box with aset of standard trailer tool
Electrical
Voltage	24V
Receptacle	7 ways (7 wire harness)
Lights	Front corner marker lamp :red ;reflector lamp :white
	Side marker :orange
	Rear lamp :red; rear reflector :white; turn single lamp :orange
Other
Usage	The height of the cargo's carrying platform is 800-1290mm, is suitable For the transportation of the large and non-dismantled objects.
Other Specifications	The max height of the rear guard from ground is 420mm
Other Descriptions	The whole body of tipping trailers adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flange plates together, and the beam runs through the longitudinal beam makes the two parts avery strong unit by automatic submerged arc welding. frame using peen-forming processing.

Q: How can we trust your company?

A: We are the official authority company by SINOTRUK, SHACMAN, BEIBEN, CIMC & FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.



Q: Can uprovide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.



Q: How about warranty item?


A: We could support uoriginal spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

Model		tri-axle Ushape self dump trailer
axle		16 tosnthree units
tire		12R22.5
capacity		80 tons
