Good Quality 3 Axles Side Dump Trailer, coal trailer 100t
- USD 14500.30 /Unit
- 1 Unit
- 41 Unit
- 8 days
Product Description
Good Quality 3 Axles Side Dump Trailer,coaltrailer100t
Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as Dump Truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.
3-axles Tipper Semi Trailer
Steel Sheet Van Trailer (Steel Wall Side / Curtain Side)
55 Tons Dump/Tipper Semi Trailer
1) Dimensions and weight:
A) Nominal dimensions (L x W x H): 14, 800 x 2, 500 x 4, 000mm
B) Internal nominal dimensions (L x W x H): 14, 295 x 2, 460 x 2, 550mm
C) King pin height: 1, 200mm
D) King pin setting: 1, 000mm from rear face of front bolster
E) Max. Payload: 100, 000kg
F) Tare weight: 16, 600kg± 5%
2) Running system:
A) Suspension system: Leaf spring or airbag suspension
B) Axle: Various axles like BPW, YORK and FUWA with various bearings
D) Tire: Various brands of bias tires or radial tires
E) King pin: Forged steel, 2" or 3.5", welded or bolt-in
F) Landing gear: 24T, 25T
3) Chassis:
A) Main beam: High-tensile steel.
B) Steel surface preparation: Shot blast
C) Painting: Zinc-rich primer and modified urethane topcoat as customers' choices
4) Brake system:
A) Double line air brake system with single air tank, standard connectors on front bolster
B) Optional anti-lock brake system
5) Electrical system: Standard electrical equipment
6) Accessories:
A) Tool box (box only)
B) Spare wheel holder (no spare tires and wheels)
Features:
1) Optional wall and door side or curtain side.
2) Entire steel chassis shot-blasted
3) All major structural steel parts of high-tensile stee
Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as Dump Truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.
3-axles Tipper Semi Trailer
Steel Sheet Van Trailer (Steel Wall Side / Curtain Side)
55 Tons Dump/Tipper Semi Trailer
1) Dimensions and weight:
A) Nominal dimensions (L x W x H): 14, 800 x 2, 500 x 4, 000mm
B) Internal nominal dimensions (L x W x H): 14, 295 x 2, 460 x 2, 550mm
C) King pin height: 1, 200mm
D) King pin setting: 1, 000mm from rear face of front bolster
E) Max. Payload: 100, 000kg
F) Tare weight: 16, 600kg± 5%
2) Running system:
A) Suspension system: Leaf spring or airbag suspension
B) Axle: Various axles like BPW, YORK and FUWA with various bearings
D) Tire: Various brands of bias tires or radial tires
E) King pin: Forged steel, 2" or 3.5", welded or bolt-in
F) Landing gear: 24T, 25T
3) Chassis:
A) Main beam: High-tensile steel.
B) Steel surface preparation: Shot blast
C) Painting: Zinc-rich primer and modified urethane topcoat as customers' choices
4) Brake system:
A) Double line air brake system with single air tank, standard connectors on front bolster
B) Optional anti-lock brake system
5) Electrical system: Standard electrical equipment
6) Accessories:
A) Tool box (box only)
B) Spare wheel holder (no spare tires and wheels)
Features:
1) Optional wall and door side or curtain side.
2) Entire steel chassis shot-blasted
3) All major structural steel parts of high-tensile stee
Trailer Model | SIDE DUMP SEMI TRAILER |
Overall Dimensions | 13000~14800*2500*3300~3900mm |
Usage | Mainly appropriate for the transportation of coal, ore, buildingmaterials and all sorts of bulk cargo products. |
Rated Load | 40~100T |
Tyre Specifications | 11.00R20/12.00R20/12R22.5 |
Tyre number | 12 piece |
Axle | FUWA /BPW 13 ~25T, optional CHINA brands |
Axle number | 3 |
Pieces of leaf-spring | 10~16 pieces |
Suspension | Heavy duty leaf spring suspension |
King/Traction/towing Pin | 90mm |
Material of king/traction Pin | Alloy steel |
Main Beam Material | Q345B manganese plates, automatic submerged arc welded |
Landing Gear /support leg | JOST /FUWA or China brand 28Tons |
Brake Air Chamber | Six double |
Floor | Steel Sheet (thickness: 3mm~8mm) |
Hidraulic cylinder | 1~3, per customers' request |
Spare Wheel Carrier | One set of spare wheel carrier including ariser. |
Electrical System | 1.Voltage: 24v2. Receptacle: 7ways (7 wire harness) |
Accessory | One tooling box with aset of standard trailer tool |
ladder | Yes |
Color | As the buyers' request |
Logo | SINOHTC |
Side Guard | Yes |
Package | Bulk /Nude |

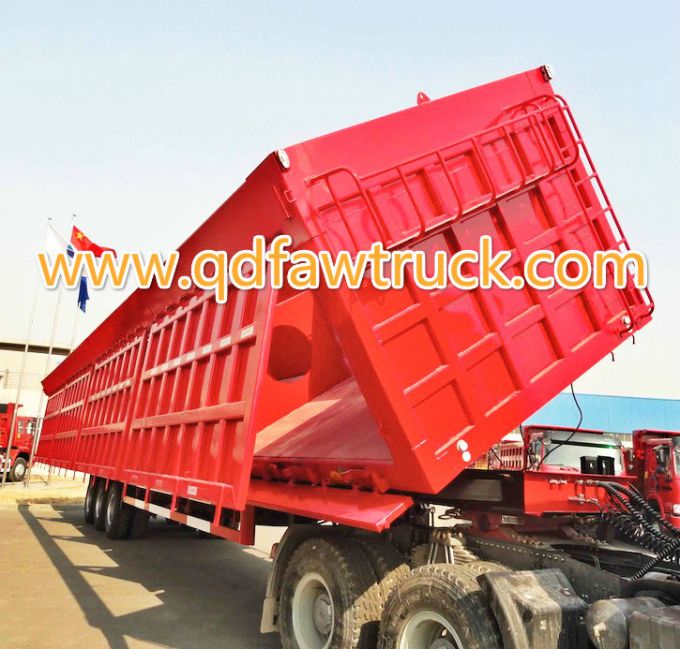

Product Images
