HTC9590 3 axle standard tipper/dump trailer
- USD 11000.23 /Unit
- 1 Unit
- 92 Unit
- 16 days
Product Description

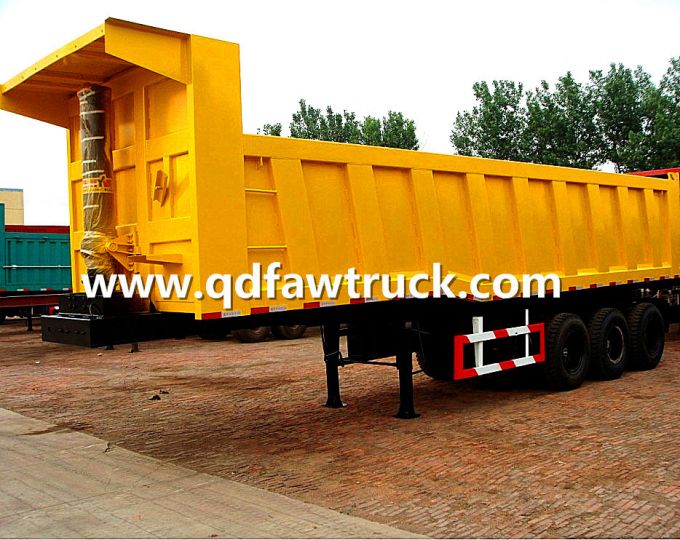

HTC9590 3 axle standard tipper/dump trailer
Q: What's the brandof your truck?
A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, Cargo truck, and other special trucks.
Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.
Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.
Dimension | 11280*2500*3972mm(outside) 10330*2330*1700mm (work space ) |
Application | sand , stone , coal , mineral products , and other bulk cargo goods |
Total Volume(m3) | 25 m³ or less than 80tons |
Bottom plate thickness(mm) | 5mm-8mm / steel or can be optional |
Lifting system | Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder |
Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double plate),down plate is 18mm,material is Q345B steel (CUSTOMIZED) |
Axle | 3 /2 axles, 13T/16T, FUWA/BPW/Huajing Brand |
Landing Gear | JOST (D200T)or China Brand 28Tons |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin or Welding type |
Suspension | Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand) |
Q: What's the brandof your truck?
A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, Cargo truck, and other special trucks.
Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.
Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.
